Leading Manufacturing PCB Factory: Multi-Layer Expertise

time:May 13. 2026, 19:42:12

In the competitive landscape of electronic hardware, selecting a sophisticated pcb manufacturer is no longer just a procurement choice; it is a strategic partnership. As global technology shifts toward miniaturization and high-speed data transmission, the demands on factory precision have reached unprecedented levels. ApolloPCB, a china-based pcb giant, has positioned itself at the forefront of this evolution, mastering the complexities of high-density interconnects and advanced material substrates.


Technical Mastery in HDI and Multi-Layer Fabrication


Modern electronics, from aerospace sensors to AI servers, rely on high-density circuit architectures. As a china's multilayer pcb manufacturer, ApolloPCB specializes in HDI PCB manufacturing, utilizing advanced laser direct imaging (LDI) and precision registration systems. Our facility is designed to handle high layer count pcb manufacturer requirements, often exceeding 32 layers with controlled impedance and tight tolerances.


The integration of blind/buried via PCB technology is a hallmark of our factory expertise. By mastering the sequential lamination process, we enable engineers to maximize routing density without compromising signal integrity. For projects requiring the most advanced standards, our standard PCB manufacturing lines provide the consistency needed for high-volume, mission-critical applications.


Micro-section view of a 20-layer HDI PCB showing precise blind and buried vias by a leading pcb manufacturer


Precision Machining: Back Drilling and Mechanical Customization


As a top chinese pcb manufacturer, we understand that performance is often found in the details. One such detail is back drilling pcb. This process removes the unused portion of copper stubs in plated through-holes, which is essential for high speed pcb designs to prevent signal reflection.


Furthermore, as a specialized Countersink Holes PCB manufacturer, ApolloPCB offers precise mechanical machining for flush-mounted hardware. Whether it involves IC substrate pcb fabrication for semiconductor packaging or Flexible Circuit Boards for foldable tech, our facility utilizes state-of-the-art CNC routing and depth-controlled drilling. This level of mechanical precision is what separates a standard pcb fabrication manufacturer from a true industrial leader like the Top China PCB Board Manufacturer.

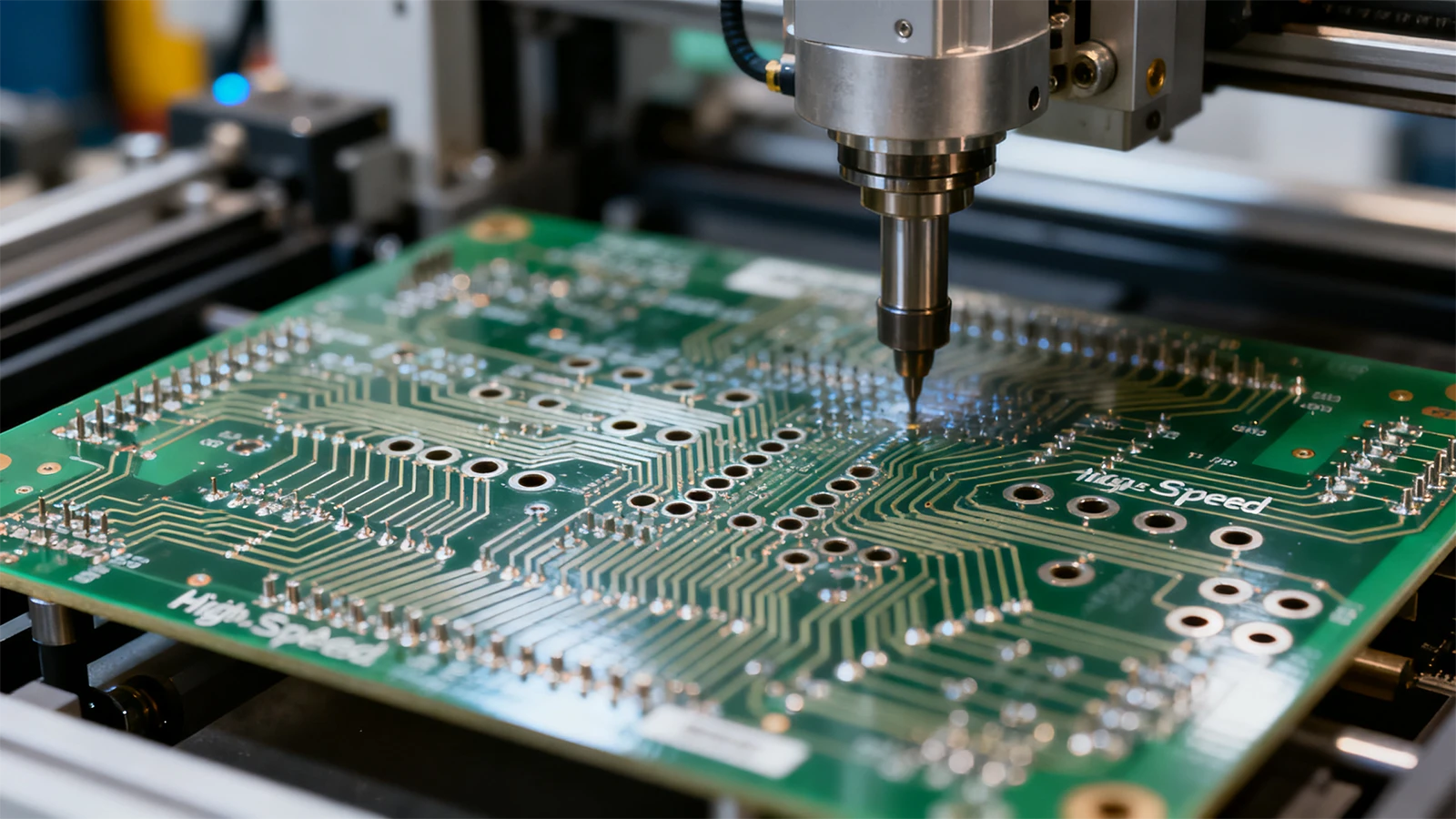

Advanced back drilling pcb and high speed pcb fabrication at ApolloPCB factory floor


Specialization in High-Frequency and Ceramic Substrates


For industries focused on telecommunications, being a High Frequency PCB Manufacturer requires specialized knowledge in RF laminates. Our production lines are optimized for RF&microwave pcb and antenna pcb manufacturer needs, using low-loss materials that ensure minimal signal dissipation.


Additionally, we cater to the automotive and power sectors as a ceramic pcb manufacturer, handling high layer count ceramics that provide superior thermal management. These capabilities ensure that every board provides the Manufacturing PCB Performance necessary for the next generation of AI and RF technologies.




Conclusion: Engineering the Future with ApolloPCB


Choosing the right partner for pcb manufacture in china means choosing a factory that can scale with your innovation. ApolloPCB combines the capacity of a large-scale manufacturer with the technical depth of a boutique engineering firm. From LED Lighting pcb manufacture to complex Custom Manufacturing PCB solutions, we bridge the gap between design and reality.


Ready to elevate your hardware? Get a custom quote from the ApolloPCB technical team today and experience the precision of a world-class manufacturing facility.


Frequently Asked Questions (FAQ)


Q1: What are the benefits of using a blind and buried vias pcb manufacturer?

A1: Using blind/buried via PCB technology allows for higher component density and smaller board sizes. This is critical for modern smartphones and wearable tech where space is at a premium.


Q2: Why is back drilling necessary for high speed pcb designs?

A2: Back drilling pcb removes "stubs" in the copper vias that act as antennas. By removing these stubs, you significantly reduce signal distortion and resonance, which is vital for data rates exceeding 10Gbps.


Q3: Can ApolloPCB handle high layer count ceramics for power electronics?

A3: Yes. As a leading ceramic pcb manufacturer, we produce high layer count ceramics that offer exceptional thermal conductivity and electrical insulation, perfect for EV power modules and high-intensity LED systems.
