Manufacturing PCB Performance: Reliable Signals for AI Tech

time:May 16. 2026, 09:17:18

The exponential rise of Artificial Intelligence (AI), machine learning models, and high-performance computing (HPC) has completely transformed hardware architecture. Modern AI accelerators, graphics processing units (GPUs), and neural processing units (NPUs) demand unprecedented data transfer rates and extreme power densities. In this environment, the raw performance of the underlying substrate is the primary bottleneck for system reliability.


As an industry-leading pcb manufacturer, ApolloPCB engineers high-performance substrates that guarantee flawless signal integrity and thermal survival under continuous, maximum workloads. For global tech companies, deploying robust AI hardware requires working with a china-based pcb giant capable of translating advanced designs into repeatable, high-reliability physical hardware via optimized standard PCB fabrication capabilities.


Maximizing Signal Integrity in High-Speed AI Architectures


AI accelerators route massive parallel data streams at frequencies that push the boundaries of physics. At data rates reaching 112 Gbps PAM4 and pushing toward newer standards, standard circuit boards suffer from severe insertion loss, crosstalk, and signal attenuation. Achieving ultra-low signal degradation requires deep expertise in material science and copper foil processing.


As a prominent pcb fabrication manufacturer, ApolloPCB utilizes ultra-low-loss (ULL) dielectrics with flat glass weaving to eliminate the "glass weave effect," which causes skew in differential pairs. Furthermore, our deployment of HDI PCB manufacturing architectures enables shorter trace lengths, directly lowering propagation delays.


As a specialized blind and buried vias pcb manufacturer, we minimize layer-to-layer stub lengths through advanced sequential lamination. For extreme high-frequency lines, our engineering team implements controlled back drilling pcb processes to completely eliminate capacitive stubs. This ensures clean signal transitions across a complex high layer count pcb manufacturer stack-up. These precision-engineered steps are vital for maintaining the reliable performance profiles detailed in our comprehensive guide on top China PCB board manufacturing solutions.


Maximizing Signal Integrity in High-Speed AI Architectures


Thermal Dissipation and Advanced Substrates for AI Hardware


AI clusters and NPUs operate under intense thermal stress. They require robust power delivery networks (PDN) that can handle massive current densities without localized overheating or voltage drops. To address this, china's multilayer pcb manufacturer networks must utilize heavy copper layers and advanced thermal management techniques.


For edge-AI devices and high-power industrial modules, ApolloPCB serves as a specialized ceramic pcb manufacturer. We leverage high layer count ceramics to provide unparalleled thermal conductivity and low coefficients of thermal expansion (CTE). Additionally, our development in IC substrate pcb technology supports direct flip-chip packaging for high-performance processors, ensuring minimal parasitic inductance and maximum heat dissipation. This material durability prevents warpage, guaranteeing long-term system stability even under continuous 24/7 compute workloads.

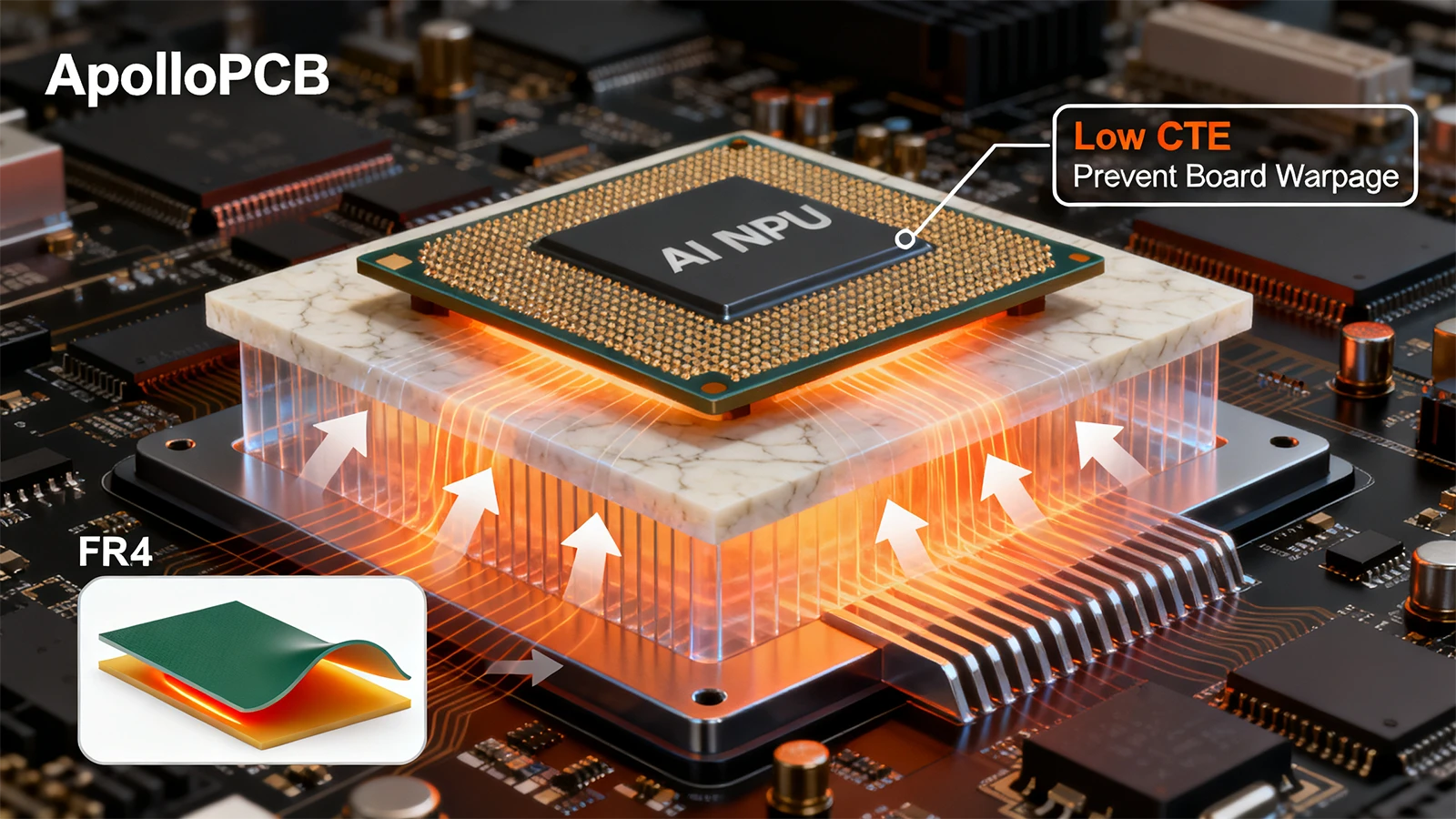

Thermal Dissipation and Advanced Substrates for AI Hardware


Broadening the Horizon: AI Edge and RF Integration


AI tech does not live solely in centralized data centers; it is rapidly moving to the edge—including autonomous driving lidars, smart robotics, and advanced telecommunications infrastructure. Operating as an expert High Frequency PCB Manufacturer, ApolloPCB integrates RF&microwave pcb layers with high-speed digital layers into rigid-flex hybrids. This enables wireless edge devices to process data locally and transmit it instantly via precision antenna pcb manufacturer elements.


For complex physical integrations, our Flexible Circuit Boards allow for dynamic bending without copper fatigue or trace cracking. Every mechanical modification, handled by an expert Countersink Holes PCB manufacturer, ensures robust physical seating in compact enclosures. Whether your project involves high-speed computing or high-power LED Lighting pcb manufacture for machine vision, our boards are built to maintain absolute signal fidelity under real-world conditions, matching the strict standards outlined in our factory manufacturing expertise overview.


Balancing Performance and Hardware ROI


While maximizing signal integrity is essential for next-gen computing, large-scale hardware deployment must remain financially viable. Navigating the matrix of high-end materials, layer counts, and mechanical tolerances requires early collaboration with an experienced partner in pcb manufacture in china. Engineers and procurement managers can look forward to our upcoming guide on custom manufacturing PCB optimization guide to see how strategic design for manufacturing (DFM) balances elite performance with market-leading ROI.


Frequently Asked Questions (FAQ)


Q1: Why is back drilling critical for high-speed AI tech PCBs?

A1: Back drilling pcb removes the unused portion (stub) of a plated through-hole via. In high speed pcb designs, these stubs act as antennas that cause signal reflections, distortion, and attenuation. Removing them is essential for clean data transmission at speeds above 25 Gbps.


Q2: What advantages do ceramic substrates offer over standard FR4 in AI hardware?

A2: As a specialized ceramic pcb manufacturer, we recommend high layer count ceramics for environments with extreme heat and power density. Ceramics provide vastly superior thermal dissipation and structural stability compared to organic substrates like FR4, preventing board failure under thermal stress.


Q3: How does HDI PCB manufacturing help with signal integrity?

A3: HDI PCB manufacturing uses microvias, thinner traces, and tighter spacing. This drastically reduces the physical distance signals must travel and minimizes parasitic capacitance and inductance, resulting in cleaner, more reliable signals for AI processors.




Conclusion: Engineering Reliability with ApolloPCB


The success of next-generation AI technologies depends heavily on the physical reliability of the underlying hardware. A single signal disruption or thermal hotspot can compromise an entire computing cluster. By partnering with a true top chinese pcb manufacturer like ApolloPCB, you ensure your hardware benefits from elite material selection, precision lamination, and meticulous signal integrity testing. We bridge the gap between complex software algorithms and rugged, high-performing physical circuitry.


Ready to secure flawless signal performance for your next high-speed computing project? Get a custom quote from the ApolloPCB technical team today and see how our advanced engineering can optimize your design.
