Common SMD LED Package Size Specification Table: OEM Guide

In the global industrial electronics sector, solid-state lighting and optoelectronic integration require strict material standardization. As original equipment manufacturers (OEMs) and engineering teams design advanced electronic systems—ranging from industrial control interfaces and automotive diagnostic panels to high-lumen commercial lighting fixtures—selecting the correct component housing footprint is critical. Surface Mount Technology (SMT) has largely replaced traditional through-hole configurations, allowing factories to achieve higher component density, faster assembly throughput, and lower production costs.

However, managing an efficient manufacturing process requires a thorough understanding of the technical specifications outlined in a standardized Common SMD LED package size specification table. Component dimensions directly impact automated assembly yields, stencil design parameters, thermal management strategies, and overall circuit board layout integrity. Selecting the wrong package can lead to costly manufacturing defects, such as component tombstoning, solder joint bridging, and localized overheating in the field. This engineering guide breaks down the essential nomenclature, dimensional metrics, and processing considerations needed to optimize your optoelectronic hardware layouts.

1. Imperial vs. Metric Nomenclature Systems

One of the most frequent points of confusion for international procurement departments and hardware designers is the dual-system naming convention used for Surface Mount Device (SMD) components.Diodes are designated by a four-digit numerical code that defines their physical length and width.However, the electronics industry switches between imperial (inches) and metric (millimeters) measurement frameworks depending on the design classification and power envelope of the chip configuration.

Understanding this mathematical distinction is essential to prevent costly layout errors before releasing design files to production:

Imperial Package Codes (Indicator Class)

Small, low-power components used primarily for circuit status display, background illumination, and compact consumer interfaces generally follow the imperial system.Common examples include 0402, 0603, 0805, and 1206 packages.An imperial 0603 package measures approximately 0.06 inches in length by 0.03 inches in width.When converted to the metric system using the standard ratio of 1 inch to 25.4 mm, these dimensions equal 1.6 mm by 0.8 mm.In metric design documentation, this footprint is labeled as a 1608 package.

Metric Package Codes (Lighting Class)

High-brightness illumination arrays, architectural strips, and heavy-duty industrial fixtures use metric package codes.Mainstream lighting components such as 2835, 3528, 5050, and 5630 are defined directly in millimeters.For example, a 5050 package measures exactly 5.0 mm in length by 5.0 mm in width.Confusing these tracking dimensions can lead to major pad mismatches during board design.

To help engineering teams navigate these overlapping classifications, ApolloPCB provides a comprehensive, cross-referenced SMD LED size chart guide that aligns physical dimensions with automated pick-and-place tracking configurations.

2. Comprehensive SMD LED Package Size Reference Table

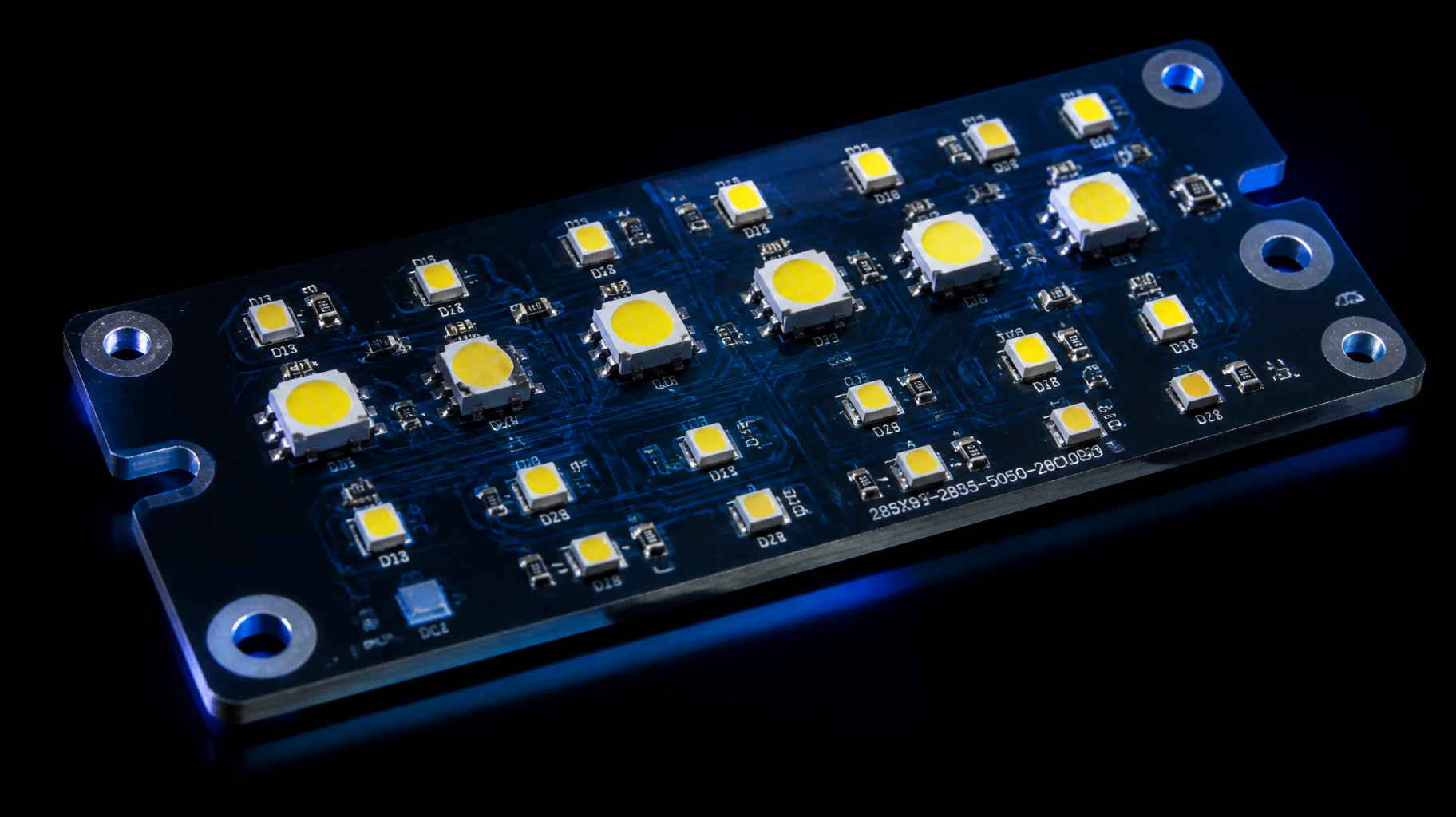

The following technical reference table lists common imperial and metric package footprints, physical boundaries, typical power handling capacities, and standard industrial applications.

Industrial Dimensional and Material Performance Matrix

Analyzing this reference table shows that as package dimensions grow, current handling capability and heat dissipation capacity increase.This variance underlines why volume procurement teams must balance available circuit board area with the operating current parameters needed for their specific application.

3. Electro-Thermal Dynamics and PCB Board Layout Considerations

Selecting a component footprint involves more than fitting components onto a circuit board; it requires managing the heat density generated at the semiconductor junction.Unlike traditional through-hole lamps that radiate heat through the surrounding air, surface-mount diodes transfer thermal energy downward through their contacts into the underlying board structure.

To prevent early light output decay and color shifts, engineers must implement specific Design for Manufacturability (DFM) layouts based on component power ratings:

• Low-Power Indicator Layouts (0402 to 1206): These low-current components generate minimal localized heat.They can be processed safely on standard multi-layer FR4 glass-epoxy substrates without extra heat sinks or thermal via matrices.

• Mid-Power Illumination Layouts (2835 and 5050): These mid-range lighting packages require optimized copper pours directly beneath their central thermal pads.Adding a matrix of plated through-hole (PTH) thermal vias helps transfer heat to internal ground planes, ensuring stable operational temperatures.

• High-Power Industrial Layouts (5630, 5730, and 3030): High-power packages operate at higher currents and generate significant heat density.Running these components on standard FR4 can lead to board warping and rapid material degradation.For these configurations, ApolloPCB recommends using Metal Core PCBs (MCPCBs) with an aluminum base.The metal core serves as an integrated heat sink, quickly pulling thermal energy away from the diode junctions to maintain long-term reliability.

4. Maximizing Yield in Automated SMT Assembly Pipelines

From an industrial production standpoint, component package selection directly affects assembly throughput and manufacturing cost efficiency.Choosing globally standardized footprints ensures smooth automated processing and high yields during high-volume production runs.

Using standardized components optimizes assembly across several key stages:

• Feeder and Nozzle Standardization: Mainstream packages like 2835 and 5050 are fully compatible with standard high-speed pick-and-place equipment.Utilizing these standard sizes allows factories to run production without custom feeder configurations or unique vacuum nozzle modifications, reducing initial tooling setup costs.

• Predictable Solder Fillet Formation: Standardized components exhibit predictable wetting and solder fillet behavior during multi-zone reflow cycles.This uniformity allows Automated Optical Inspection (AOI) systems to check joint quality accurately, reducing false defect flags and speeding up production transitions.

• Mitigating Fine-Pitch Assembly Defects: Ultra-compact packages like 0402 require tight stencil tolerances and precise solder paste placement.Minor paste printing variations can cause component shifting or tombstoning during reflow.ApolloPCB addresses these risks by applying high-precision laser-direct imaging (LDI) and strict solder paste verification to ensure reliable solder joint profiles.

5. Authoritative Production Quality Controls and Certification Systems

In critical sectors like automotive instrumentation, medical displays, and industrial automation networks, component failure can lead to severe system downtime and warranty liabilities.Maintaining consistent quality requires a manufacturing partner backed by strict international compliance standards and rigorous data-driven testing protocols.

ApolloPCB executes all optoelectronic and SMT manufacturing workflows under strict adherence to IPC Class 3 (Advanced High-Reliability Electronic Products) and IATF 16949 (Automotive Quality Management Systems) guidelines:

• Automated Solder Paste Inspection (SPI): Inline 3D scanners measure paste deposition heights and volumes down to the micron level before component placement, preventing solder bridging or voiding under large thermal pads.

• Multi-Angle Automated Optical Inspection (AOI): High-resolution multi-camera inspection arrays verify component presence, proper orientation, and correct polarity markings across high-density component arrays.

• Full In-Circuit and Functional Testing (FCT): Automated functional testing cells check the electrical response and current draw of every board circuit under simulated operational loads, ensuring perfect reliability prior to final shipment.

Frequently Asked Questions (FAQ)

Q1: Why do some SMD LED package codes conflict between metric and imperial tracking systems?

Certain numerical codes overlap between systems, meaning the same numbers designate different physical footprints depending on whether the metric or imperial system is applied.For example, an imperial 0603 package measures 1.6 mm by 0.8 mm, while a metric 0603 footprint measures 0.6 mm by 0.3 mm.ApolloPCB reviews all incoming layout files and bills of materials (BOM) during automated engineering audits to ensure your landing pads match your chosen component system perfectly.

Q2: When should my optoelectronic circuit design switch from standard FR4 to aluminum core PCBs?

When your layout incorporates high-power component packages (such as 3030, 5630, or 5730) operating at higher current densities, the heat density can exceed the thermal capacity of standard FR4.ApolloPCB recommends switching to an aluminum-core Metal Core PCB (MCPCB) for these applications to provide efficient thermal dissipation and maintain stable component performance.

Q3: Does ApolloPCB support high-speed SMT placement for ultra-compact 0402 packages?

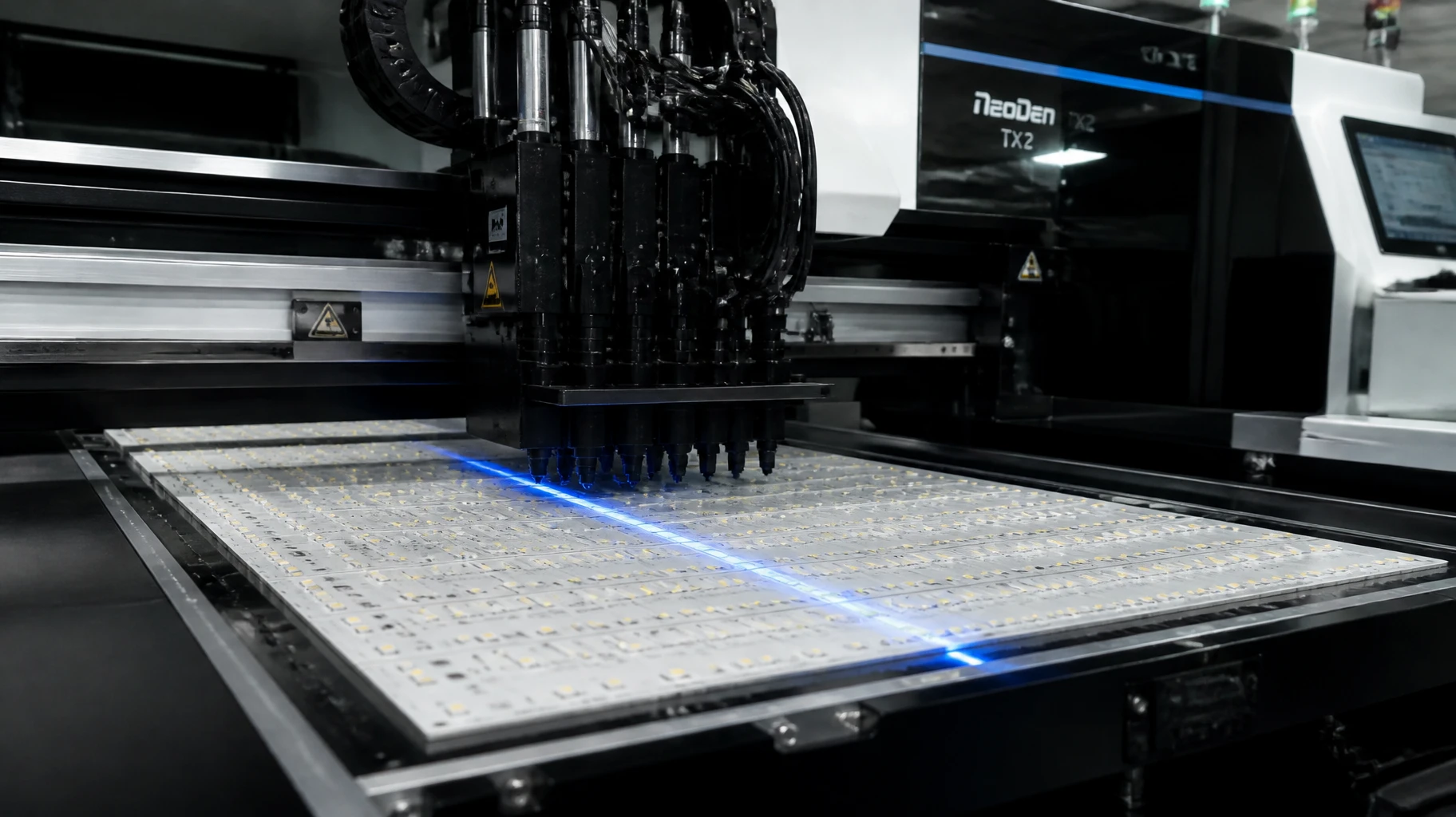

Yes. Our automated assembly cells utilize programmable pick-and-place systems fitted with precision vision alignment systems and soft-tipped vacuum nozzles, ensuring accurate placement and high yields for compact 0402 and 0603 indicator components without risking component damage.
