The Versatility of FR4 PCB: High-Performance Standards

Modern electronics demand more than just connectivity. They require a foundation that handles speed, heat, and physical stress. The FR4 PCB is that foundation. Known for its adaptability, the fr4 printed circuit board remains the most popular choice for everything from smartphones to industrial robotics.

At ApolloPCB, we produce boards that meet high-performance standards for a global market. This article explores why FR4 is the most versatile substrate material in the industry today.

Superior Electrical Insulation and Signal Integrity

The primary job of a PCB is to keep signals clean. FR4 is a composite of epoxy resin and woven fiberglass. This mix creates a perfect electrical insulator.

In high-speed pcb designs, maintaining signal integrity is the biggest challenge. FR4 provides a stable dielectric constant across various frequencies. This ensures that data moves quickly without interference. Whether you are building a simple rigid fr4 pcb or a complex communication device, the material's electrical traits ensure constant uptime.

Mechanical Strength for Tough Environments

One reason engineers choose the fr4 pcb material is its ruggedness. It offers high mechanical strength while remaining lightweight.

• Standard FR4: Perfect for consumer electronics where weight and cost matter.

• Heavy Copper FR4: Used in power systems to handle higher current loads.

• Durable Substrate: The material resists moisture and chemicals, protecting the internal dielectric layers.

Our pcb manufacturing process focuses on preserving this strength. We ensure the board can handle the physical vibrations found in automotive and aerospace applications.

Thermal Performance: Beyond the Basics

Heat management is a core part of pcb manufacturing. When power flows, it creates heat generated that can damage components. To prevent this, engineers must look at the glass transition temperature tg.

A HIGH TG FR4 PCB is necessary for high-heat environments. These high tg pcbs maintain their shape even when the temperature spikes. While FR4 has lower high thermal conductivity than metal, it offers much better electrical isolation. For LED systems that need a balance of cooling and complexity, we often compare FR4 with heat dissipation solutions like Aluminum.

Advanced Features for Modern Designs

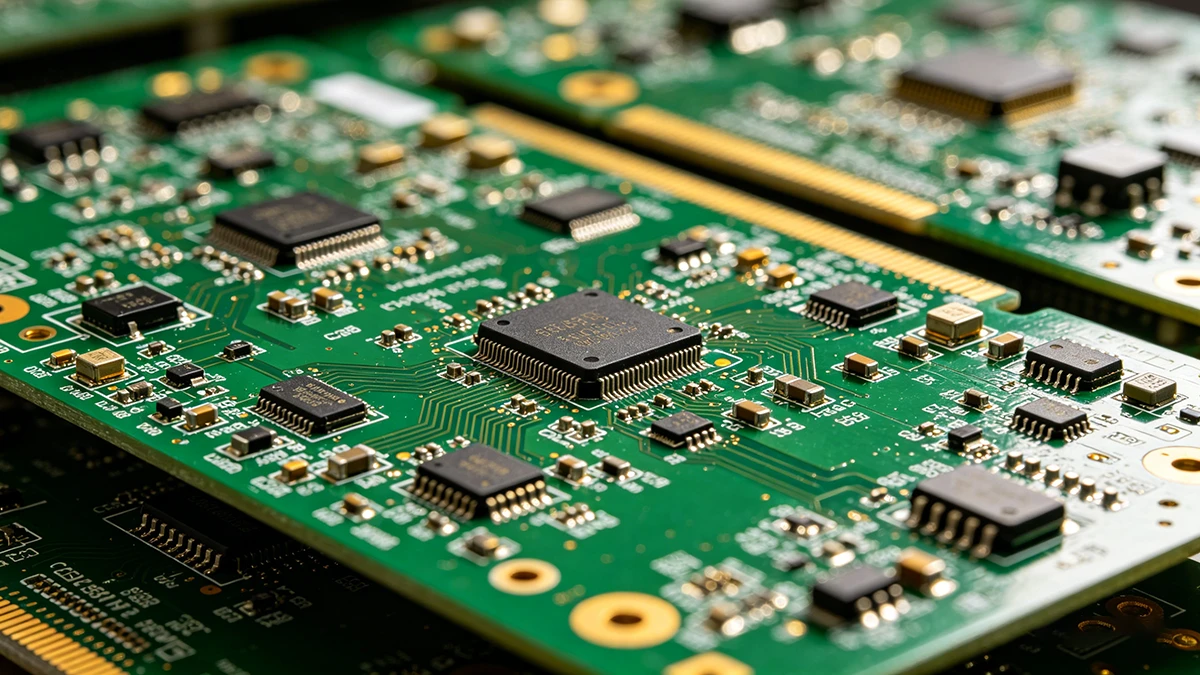

ApolloPCB uses precision tools to add complex features to your fr4 printed circuit board. These features allow for smaller, more efficient products.

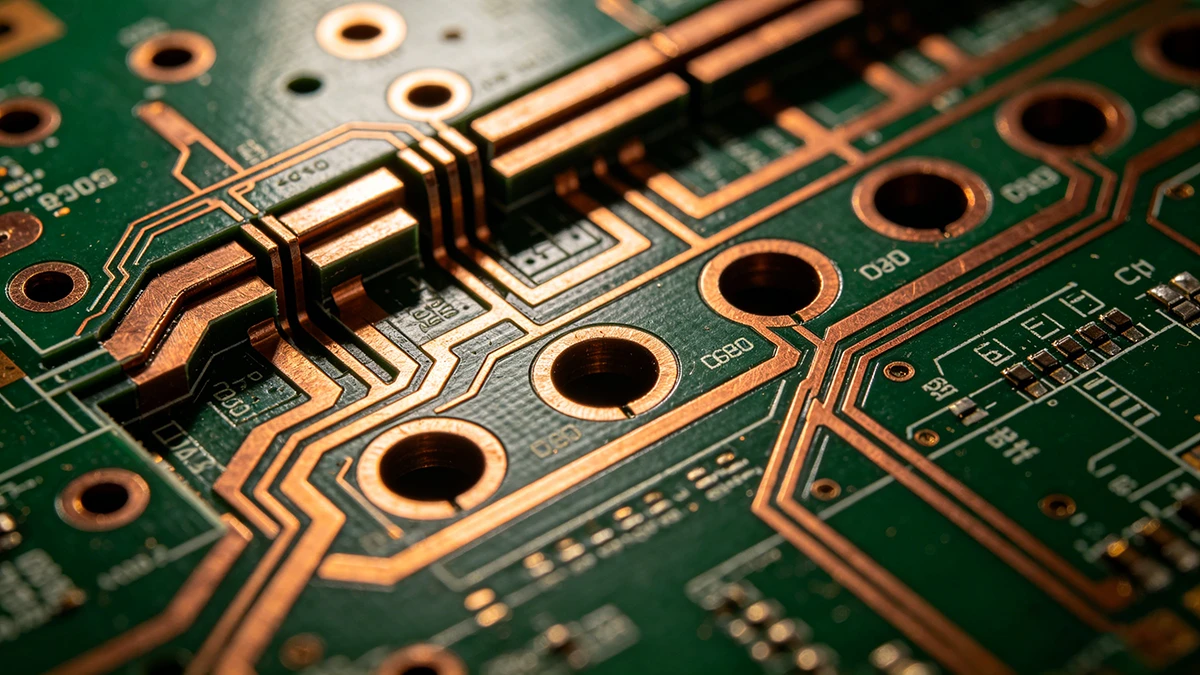

• Precision Drilling: We can create blind and buried vias FR4 PCB to save space in multi-layer designs.

• Mechanical Customization: We offer Countersink Holes in fr4 PCB and Counterbore holes in fr4 PCB for secure mounting in metal housings.

These specialized traits require an experienced FR4 PCB manufacturer. We follow the fr4 pcb datesheet for every batch to ensure the drilled hole quality is perfect.

Choosing the Right FR4 PCB Material Type

Selecting the best base materials depends on your specific application. There is no "one size fits all" in electronics.

• Low CTE FR4: Essential for boards with many fine-pitch parts. It limits expansion during heat transfer.

• Halogen-Free FR4: The best choice for environmentally friendly products.

• High-Frequency Materials: Modified versions of FR4 that reduce signal loss for 5G hardware.

ApolloPCB reviews your fr4 pcb material specification to suggest the most cost effective options. We help you find the balance between high performance and production budget.

Conclusion

The FR4 PCB is a masterpiece of engineering. From the insulating layer to the precision etching, it enables the technology we use every day. Whether you need a simple standard fr4 board or a high-reliability custom solution, ApolloPCB is here to help. Contact us today to review your next design.

Frequently Asked Questions (FAQ)

Q1: Why is FR4 the most versatile choice for modern electronics?

FR4 offers an unmatched balance of high mechanical strength, excellent electrical insulation, and cost-efficiency. At ApolloPCB, we utilize premium-grade epoxy resin and woven fiberglass to ensure our fr4 printed circuit boards meet the rigorous high-performance standards required for everything from consumer gadgets to industrial robotics.

Q2: How does ApolloPCB ensure signal integrity in multi-layer FR4 designs?

We maintain signal integrity by strictly controlling the dielectric constant during our pcb manufacturing process. By using advanced lamination techniques and precision etching, ApolloPCB ensures that even complex multi-layer boards provide stable electrical performance for high-speed data transmission.

Q3: Can FR4 PCBs handle high-heat industrial applications?

Yes, when using the right material grade. For environments with extreme thermal stress, ApolloPCB recommends a HIGH TG FR4 PCB. These boards have a higher glass transition temperature (Tg), allowing them to remain rigid and reliable at temperatures where standard boards might fail, ensuring long-term durability for power-heavy systems.
