Selecting the optimal FR4 PCB substrate is a critical decision for engineers and procurement teams in the industrial sector. You require a printed circuit board that delivers uncompromising reliability while maintaining a competitive edge in pricing.

At ApolloPCB, we specialize in providing custom FR4 PCB solutions that bridge the gap between technical excellence and budget management. This comprehensive guide details how to optimize your pcb designs for peak high performance and cost effective production.

Strategic Selection of Base Materials

The fr4 pcb material specification serves as the primary cost driver for any electronic assembly. Understanding the nuances of different base materials allows you to tailor your project to specific environmental demands without over-specifying.

• Standard Grade FR4: As a premier electrical insulator, standard FR4 remains the industry baseline for consumer electronics. It offers a stable dielectric constant and robust mechanical strength at a lower price point.

• HIGH TG FR4 PCB: For applications involving extreme thermal stress, selecting a material with a high glass transition temperature tg is mandatory. This prevents structural deformation during multi-cycle reflow soldering.

• Low CTE FR4: When your pcb designs feature high-density BGA components, low CTE (Coefficient of Thermal Expansion) materials are essential. They minimize the mismatch during heat transfer, protecting fragile solder joints from fatigue.

Designing for High Frequency Applications

In the era of 5G and IoT, many pcb designs are moving into high frequency applications. Standard FR4 can sometimes struggle with signal loss at these speeds.

To maintain signal integrity, ApolloPCB offers specialized high-frequency base materials that incorporate ceramic fillers into the epoxy resin matrix. This modification reduces the dissipation factor, ensuring your data moves at peak velocity with minimal distortion. By consulting with our engineering team early, you can select a fr4 pcb material type that supports high-speed communication while remaining cost effective.

DFM: The Foundation of Cost-Effective PCB Manufacturing

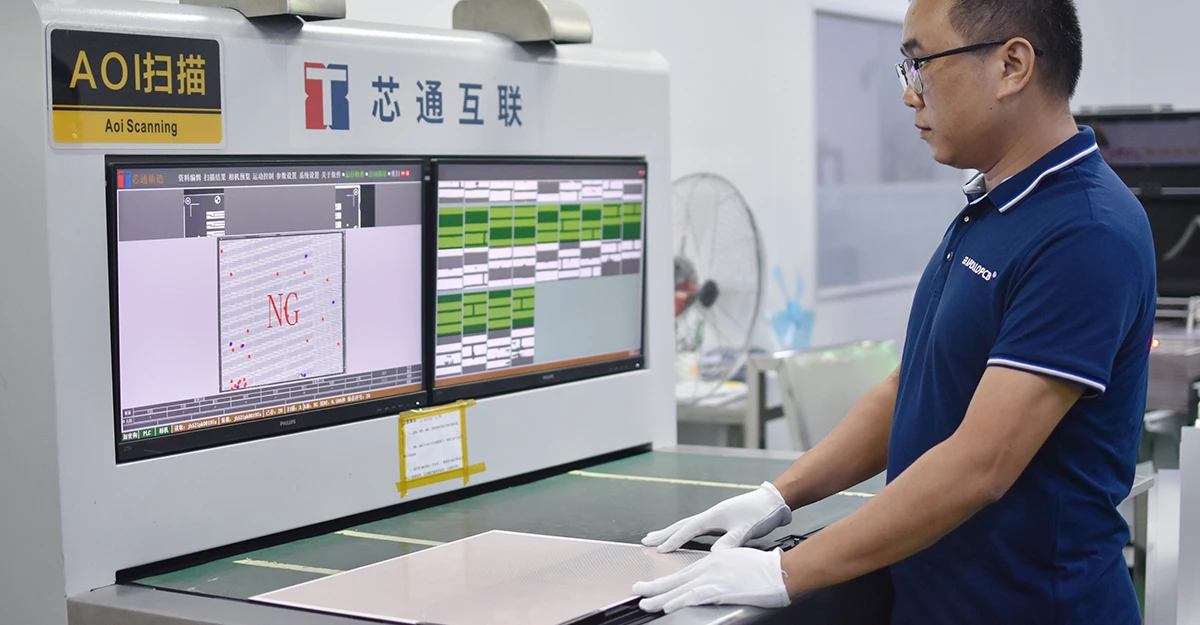

Design for Manufacturing (DFM) is not just about error-checking; it is a financial strategy. Our pcb manufacturing experts perform a meticulous review of every design to identify cost-saving opportunities.

• Panelization Optimization: We analyze your board dimensions to maximize panel utilization. Higher density per panel reduces waste of the substrate material, lowering your per-unit cost.

• Drill Bit Management: Reducing the variety of drilled hole sizes minimizes tool changes during pcb production, speeding up the fabrication cycle.

• Trace and Space Calibration: Aligning your trace widths with our standard manufacturing tolerances avoids the premium costs associated with "ultra-fine" processes unless they are technically required.

The Importance of Solder Mask and Surface Finish

Often overlooked, the solder mask plays a vital role in both protection and assembly yield. A high-quality solder mask prevents solder bridging and protects the copper traces from oxidation.

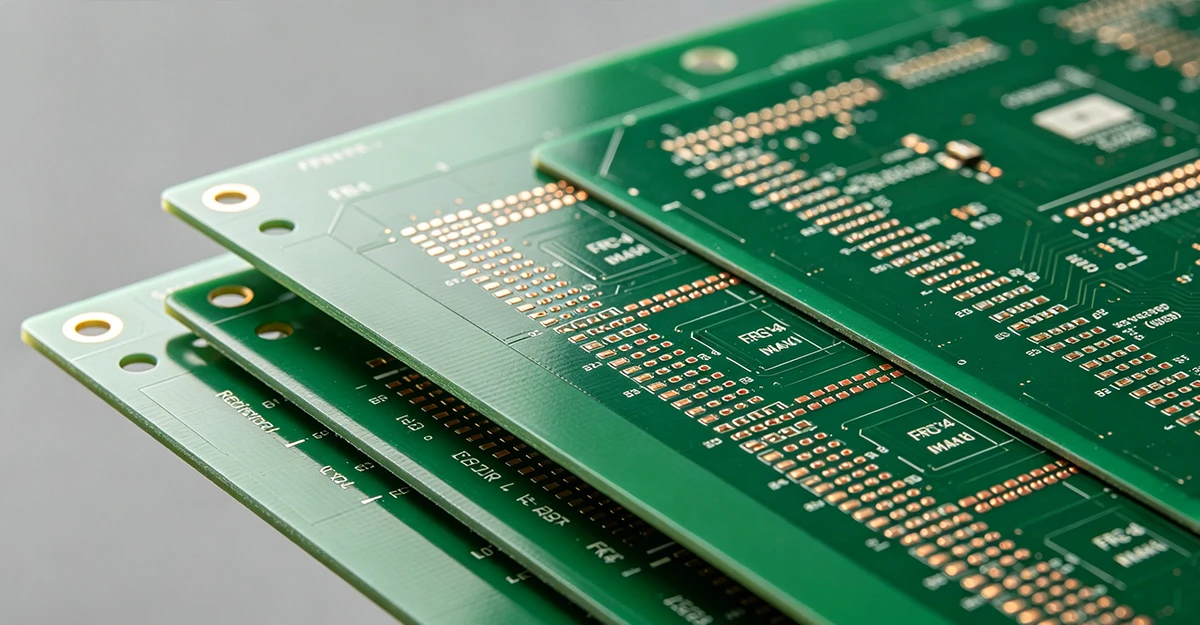

At ApolloPCB, we utilize Laser Direct Imaging (LDI) for solder mask registration. This ensures that even the smallest SMT pads are correctly exposed, which is critical for high performance in compact devices. Furthermore, selecting the right surface finish—such as Lead-Free HASL for cost-savings or ENIG for superior flatness—can drastically impact your assembly reliability.

Achieving High Reliability in Multi-Layer Projects

Complexity should never compromise the lifespan of your product. For medical, aerospace, and automotive sectors, the internal dielectric layers must be flawless.

Our multi-layer pcb fabrication process involves strict impedance control and 100% electrical test validation. This guarantees that every rigid fr4 pcb maintains its signal integrity under continuous operation. By integrating blind and buried vias FR4 PCB, we can also help you reduce board size, which can often offset the cost of the more complex manufacturing steps.

Thermal Management and Material Integrity

Efficient heat dissipation does not always require expensive metal substrates. Through advanced pcb manufacturing techniques, we can enhance the thermal profile of a standard fr4 printed circuit board.

• Thermal Vias: Strategically placing copper-filled vias under high-power components facilitates efficient heat transfer to internal ground planes.

• Heavy Copper Plating: Increasing copper weight to 2oz or 3oz improves the lateral spread of heat generated by active components.

• Mechanical Customization: We offer Countersink Holes in fr4 PCB and Counterbore holes in fr4 PCB to allow direct mounting to metal enclosures, acting as secondary heat sinks.

Partnering with a Proven FR4 PCB Manufacturer

ApolloPCB is more than a supplier; we are your technical ally. We understand that your pcb designs represent your competitive advantage. That is why we provide full material traceability and adhere to the strictest IPC Class 2 and Class 3 standards.

Whether you need a simple fr4 pcb material specification for a consumer prototype or a complex high tg pcbs build for industrial machinery, we deliver on time and within budget. Our commitment to high-performance standards ensures that your product stands out in a crowded market.

Conclusion

Successfully balancing cost and quality in FR4 PCB procurement requires a deep understanding of material science and manufacturing limits. From the selection of the insulating layer to the final electrical test, every step must be optimized.

Let ApolloPCB guide you through the complexities of pcb production. Contact our engineering team today for a comprehensive quote and DFM review. Together, we can build a high performance product that respects your bottom line.
