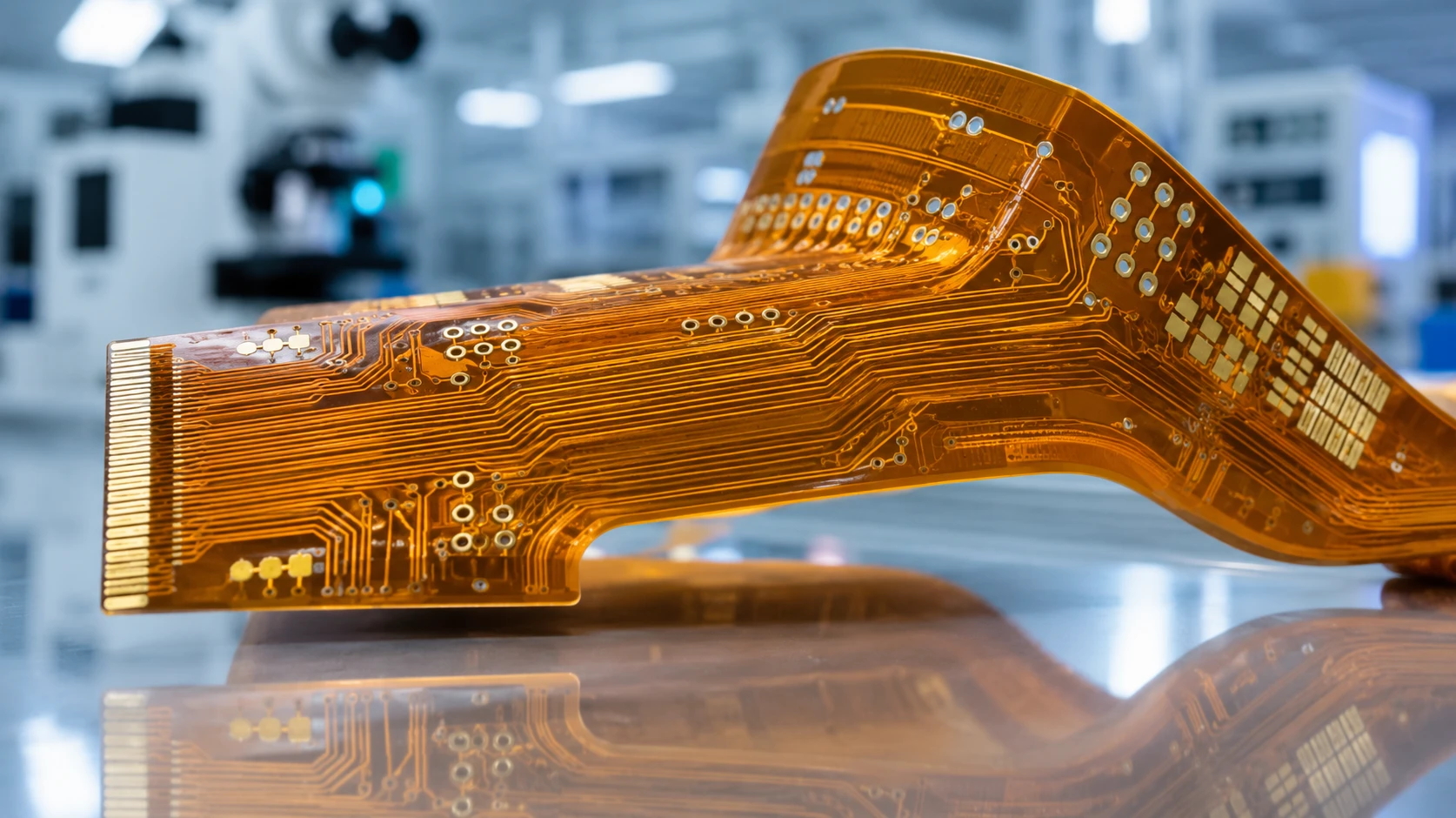

The global industrial manufacturing landscape is undergoing an unprecedented architectural transformation. As electronic product designers, hardware engineers, and original equipment manufacturers (OEMs) push the boundaries of spatial contraction, traditional rigid circuit boards are encountering absolute physical and mechanical constraints. Modern hardware architectures—ranging from autonomous vehicle driver-assistance systems (ADAS) and medical diagnostic imaging arrays to high-frequency aerospace telemetry and complex consumer electronics—demand a robust electrical architecture that can twist, fold, bend, and fit into non-linear, ultra-thin enclosures without compromising signal transmission or system longevity.

This micro-spatial revolution has shifted flexible printed circuits (FPCs) from a specialized spacing alternative into a core baseline requirement for global technology factories. However, translating an intricate, high-density flexible layout from a digital CAD schematic into a highly reproducible, high-yielding physical product introduces immense manufacturing complexity. Dealing with thin polyimide films requires an exceptionally high level of process control due to the material's hygroscopic nature and inherent dimensional instability.

To mitigate field failures and optimize production yield, industrial procurement leads must partner with a technologically advanced, vertically integrated flexible pcb manufacturer. A true tier-1 partner must provide proactive Design for Manufacturability (DFM) support during early prototyping phases while operating the high-capacity, automated fabrication assets required to execute large-scale, zero-defect production runs.

1. Sourcing Logistics: Evaluating Global Ecosystem Dynamics for Factory Sourcing

When supply chain directors and factory procurement leads evaluate vendors for high-volume automated electronic assemblies, they must look beyond simple per-unit pricing. Sourcing flexible electronic hardware requires a deep assessment of regional manufacturing ecosystems, raw material supply chain integration, and the technical engineering expertise available within the local workforce. Choosing the right partner from among global flexible pcb manufacturers can determine whether a product launch succeeds or suffers from chronic line stoppages.

Sourcing from a Flexible PCB Manufacturer in China

Sourcing circuit hardware from an established flexible pcb manufacturer china offers massive advantages in cost optimization, ecosystem responsiveness, and scale that are difficult to replicate in other industrial corridors. The electronics manufacturing clusters in South China host the world's most densely concentrated network of material suppliers, specialized chemical processing lines, automated optical inspection developers, and precision laser-drilling equipment manufacturers.

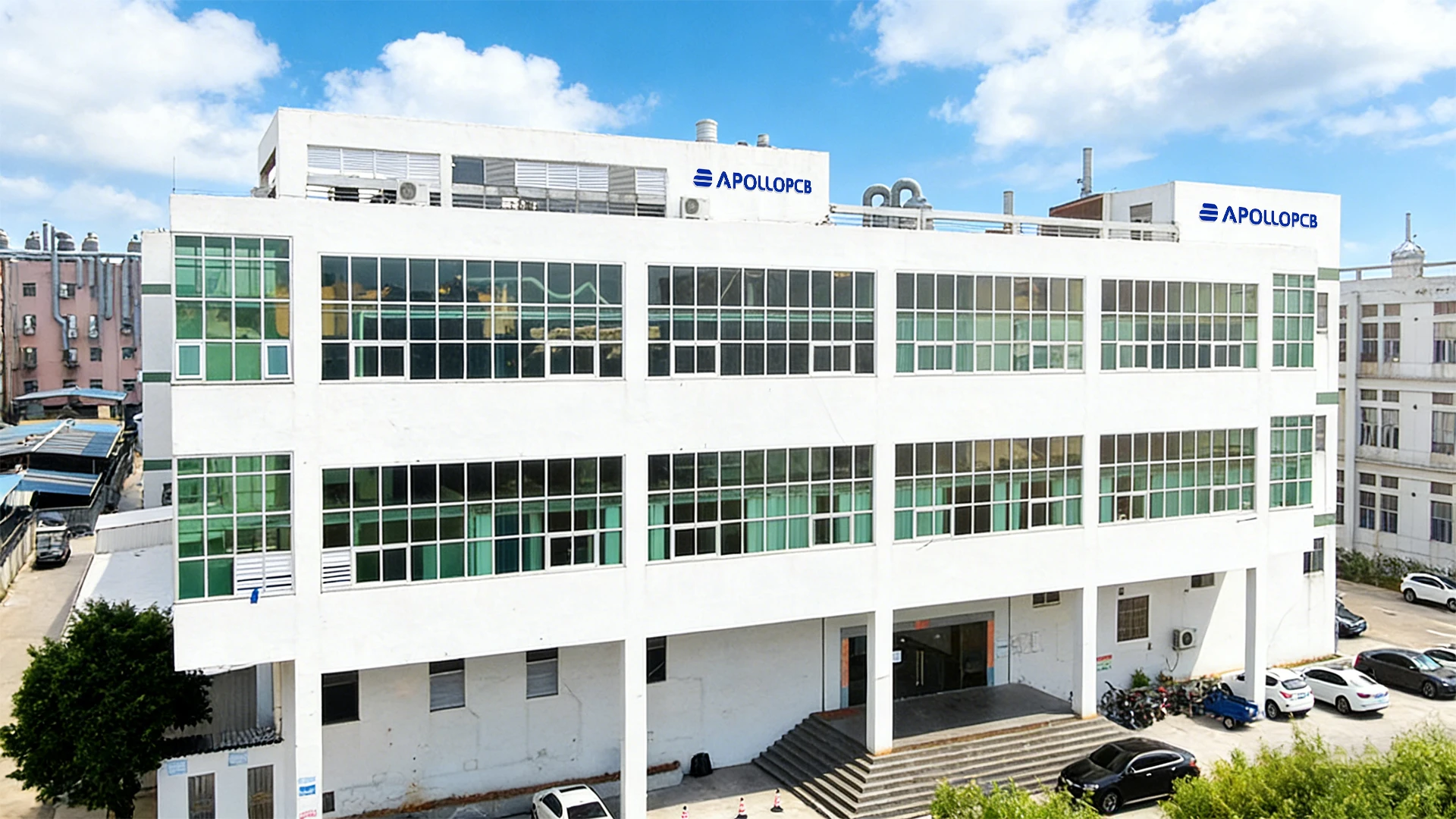

As a highly integrated flexible pcb manufacturer, ApolloPCB directly leverages this localized industrial infrastructure to protect our global B2B clients from supply chain disruptions. Our direct factory access to premium raw components—such as advanced adhesiveless copper-clad laminates and high-purity polyimide base films—enables us to maintain an uninterrupted production flow, insulate clients from raw material market fluctuations, and offer highly competitive lead times.

Furthermore, this concentrated ecosystem allows us to compress complex New Product Introduction (NPI) cycles, executing fast-turn engineering iterations that transition seamlessly into high-volume rollouts on our mass production floors.

Sourcing in Alternative and Emerging Markets

Enterprise supply chain strategists frequently audit alternative manufacturing regions to maintain multi-source risk management profiles:

• Flexible PCB Manufacturer United States: Domestic fabrication facilities in Western markets are generally optimized for low-volume, highly specialized aerospace or military-grade prototyping. However, when an industrial design matures past engineering validation and requires scaling up to tens of thousands of units per month, domestic Western lines often lack the continuous automated roll-to-roll (R2R) equipment networks needed to sustain high-throughput manufacturing, resulting in exceptionally high unit costs and significant scaling friction.

• Flexible PCB Manufacturer in India / Flexible PCB Manufacturers in India: The South Asian electronics corridor is expanding its domestic assembly footprint through substantial infrastructure investments. However, the local ecosystem for advanced raw material fabrication—such as sub-100 micron adhesiveless base laminates and ultra-thin coverlays—remains heavily reliant on East Asian imports. This extended raw material supply loop can introduce lead-time unpredictability and increased logistics overhead during rapid-scaling product rollouts.

For global factories looking to minimize Total Cost of Ownership (TCO) while securing an ultra-stable, highly scalable product pipeline, the most efficient strategy combines localized Western design definition with the high-capacity, zero-defect execution of an established offshore core manufacturing center.

2. Advanced Material Science: Overcoming Mechanical and Electrical Failures

A flexible circuit board is fundamentally an active mechanical component that must simultaneously function as a high-frequency electrical conduit. Because an FPC is engineered to experience repetitive bending, twisting, and structural vibrations throughout its operational life, its performance depends entirely on the physical and chemical integrity of its base material stack-up. Selecting a partner that understands the nuances of raw substrate behavior is a key step when choosing a competent flexible pcb board manufacturer.

Adhesiveless vs. Adhesive-Backed Base Laminates

Traditional flexible pcb manufacturing historically relied on 3-layer Flexible Copper Clad Laminates (FCCL), which use an organic adhesive layer (typically an acrylic or butyral epoxy) to bond the conductive copper foil to the structural polyimide (PI) core film. While cost-effective for simple, static "bend-and-stay" configurations, these adhesive layers represent a significant point of failure in high-reliability industrial applications:

• Z-Axis Thermal Stress: Acrylic adhesives exhibit an exceptionally high Coefficient of Thermal Expansion (CTE). During multi-stage lead-free SMT reflow cycles (which routinely peak at 260°C), the adhesive expands aggressively along the Z-axis, placing severe mechanical stress on plated through-holes (PTH) and microvias, frequently leading to latent, field-induced open-circuit failures.

• Mechanical Degradation: The inclusion of an adhesive layer increases the total profile thickness of the circuit stack-up. This extra thickness increases the overall stiffness of the board and degrades its minimum allowable bend radius, causing accelerated fatigue cracking under dynamic flexing conditions.

• Signal Attenuation: Acrylic adhesives possess significantly higher dielectric constants and dissipation factors than pure polyimide. This material limitation introduces unacceptable insertion losses, signal distortion, and impedance mismatches in high-frequency, multi-gigabit data transmission lines.

To eliminate these performance bottlenecks, ApolloPCB operates as a premium custom flexible pcb manufacturer specializing in the processing of 2-layer adhesiveless FCCL substrates. By utilizing advanced cast or cast-on-copper lamination techniques, the copper foil is bonded directly to the polyimide core on a molecular level without any structural adhesive. This advanced material configuration delivers an ultra-thin board profile, doubles the dynamic flex cycling life, lowers the dielectric breakdown risk, and provides a uniform, low-loss medium optimized for high-speed digital routing.

Copper Grain Structures: ED vs. RA Copper

The metallurgical classification of the copper foil specified in the design files dictates how well the FPC will tolerate structural bending strain. Our manufacturing facility handles two distinct copper classifications:

• Electro-Deposited (ED) Copper: Manufactured via an electrolytic plating process, ED copper exhibits a vertical, columnar grain structure. While excellent for rigid boards and static installations, it is relatively brittle. Under continuous mechanical flexing, these vertical grain boundaries act as micro-fissure propagation pathways, causing traces to snap cleanly under cyclic strain.

• Rolled Annealed (RA) Copper: Fabricated by running heavy copper ingots through high-pressure mechanical rollers, RA copper features an elongated, horizontal grain structure oriented parallel to the board surface. This horizontal grain matrix makes RA copper exceptionally ductile. When oriented properly relative to the primary bend axis, RA copper can withstand millions of severe dynamic flexing cycles without experiencing work-hardening or structural failure.

Stiffener Integration and Thermal Performance

Because flexible circuits are inherently pliable, specific regions that host dense multi-pin connectors, heavy microprocessors, or heavy surface-mount components require localized mechanical stabilization to prevent solder joints from peeling off under bending loads.

ApolloPCB integrates a wide array of specialized stiffeners—including rigid FR4 plates, polyimide thickness-adders (for ZIF connector regions), and non-magnetic stainless steel or aluminum backing sheets. For designs that manage high power densities or generate significant localized heat loads, our engineering teams deploy hybrid configurations that balance mechanical flexibility with heat dissipation, drawing on our extensive manufacturing data compiled in our comprehensive guide on aluminum and flexible PCB thermal properties.

3. The Advanced Flexible PCB Manufacturing Process

Fabricating a multi-layer, high-density flexible circuit requires specialized engineering care and specialized equipment setups that differ dramatically from standard rigid PCB production lines. Because unreinforced polyimide film is highly hygroscopic and dimensionally unstable, environmental factors such as ambient humidity, chemical bath temperatures, and mechanical transport tension must be continuously controlled.

Below is an analytical breakdown of the advanced flexible pcb manufacturing process executed inside the ApolloPCB facility to ensure IPC Class 3 structural compliance:

Flexible PCB Fabrication Pipeline

Process Deep Dive: Photolithography, LDI, and Etching

Traditional physical film photomasks are highly prone to thermal stretching and misregistration errors when applied to flexible sheets. ApolloPCB avoids these limitations by utilizing state-of-the-art Laser Direct Imaging (LDI) systems across our flexible pcb manufacture lines. The digital CAD circuit layout is written directly onto the photoresist-coated copper layer via a computer-controlled UV laser beam. The LDI system utilizes automated optical registration cameras to track alignment markers on the flexible panel in real time, automatically adjusting the laser path to compensate for any micro-scale material distortion.

Following laser exposure, the panel passes through a computerized acid etching chamber where unexposed copper is removed to reveal the circuit traces. For advanced high-density applications, our chemical lines maintain strict fluid-dynamics and spray-pressure control, allowing us to cleanly execute ultra-fine line-and-space tolerances down to 25 microns without causing trace undercutting or residual copper bridges.

Coverlay Application and Vacuum Lamination Control

Rather than using a liquid photoimageable solder mask, flexible boards utilize a solid polyimide film coated with a thermosetting adhesive, known as a coverlay, to protect the delicate copper traces from oxidation, dust, and moisture ingress. The coverlay access windows are precision pre-cut via high-speed UV laser routers.

Next, technicians align the coverlay sheet over the etched copper traces using high-magnification split-vision optical systems. The aligned panels are loaded into an automated vacuum hydraulic press. The press applies a carefully calibrated temperature-ramping profile under heavy pressure, forcing the coverlay adhesive to flow uniformly into the complex spaces between the copper traces without creating air pockets, voids, or coverlay displacement. To secure maximum longevity for your production infrastructure, partnering with a premier partner like ApolloPCB ensures elite control over high-yield flexible PCB manufacturing pipelines.

4. High-Density Integration: SMT Assembly and Tooling Controls

A perfectly fabricated bare flexible circuit board is only half of the hardware equation. Transforming a raw polyimide sheet into a functioning sub-assembly requires specialized component placement, custom tooling, and rigorous process discipline. If components are attached incorrectly, the thermal stress of assembly can destroy the substrate, or the mechanical strain of field deployment will crack the solder joints.

Overcoming the SMT Handling Challenge

Because bare flexible circuits are pliable and thin, they cannot pass through standard high-speed Surface Mount Technology (SMT) pick-and-place conveyors or solder paste printers without warping, vibration, or shifting out of plane.

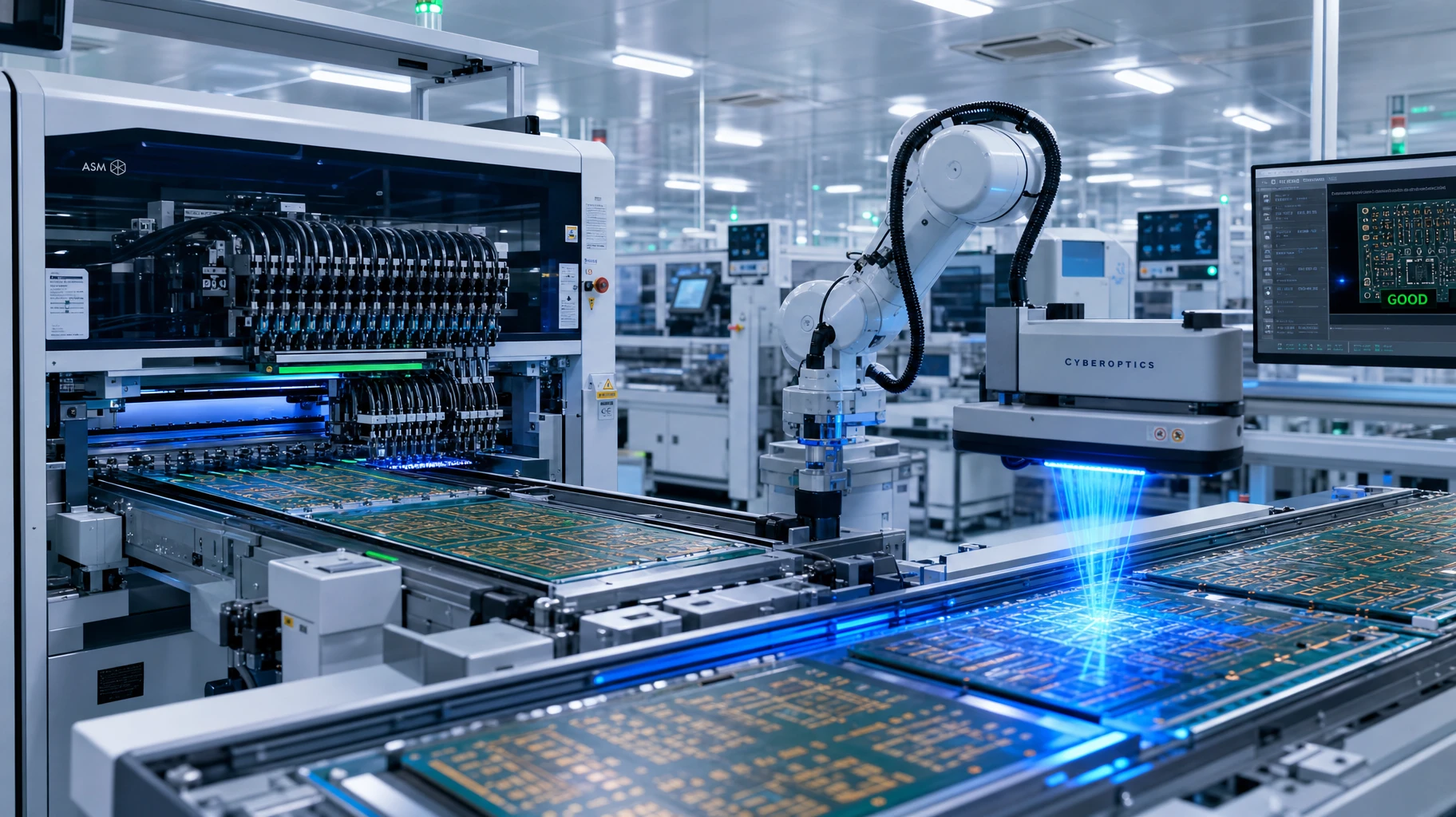

To achieve precise component placement, ApolloPCB operates as a fully integrated flexible pcb assembly manufacturer. Our SMT lines utilize custom-machined aluminum or magnetic vacuum carrier fixtures to hold each flexible panel completely flat throughout the entire component attachment pipeline:

• Solder Paste Printing: The carrier fixture locks the FPC flat under tension, ensuring uniform solder paste deposits across ultra-fine-pitch component pads, preventing solder bridging or starvation.

• Pick-and-Place Accuracy: Automated optical alignment systems read fiducial markers directly on the FPC surface, allowing placement nozzles to accurately mount micro-BGAs, chip-scale packages (CSPs), and 01005 passives onto fine-pitch footprints.

• Reflow Temperature Profiling: Because flexible polyimide has a much lower thermal mass than rigid FR4 boards, it absorbs heat rapidly. Our multi-zone, lead-free reflow ovens utilize custom-calibrated thermal profiles that ensure complete solder reflow while keeping peak temperatures within strict safety envelopes to prevent polyimide blistering or trace de-lamination.

Key Assembly Engineering Standard Operating Procedures (SOPs)

Critical Assembly Constraints

• Pre-Assembly Baking: 4-6 hours vacuum bake at 120°C. This step purges trapped moisture from the polyimide matrix to prevent outgassing and micro-blistering during 260°C reflow cycles.

• Capillary Underfill: Dispensing low-viscosity, high-modulus epoxy beneath BGAs. This redistributes mechanical bending and vibrational shear stresses away from fragile solder balls to prevent joint cracking.

• Selective Stiffener Bonding: Thermosetting or pressure-sensitive adhesive (PSA) pressing. This restricts flexibility beneath high-pin-count connectors, absorbing mechanical mating and unmating forces.

• Thermosonic Wire Bonding: Controlled gold wire wedge/ball bonding. This enables high-reliability FPC gold ball bonding for bare semiconductor-on-flex integrations.

By consolidating bare-board fabrication and high-density component assembly under a single factory management framework, ApolloPCB functions as a single-source flexible pcb fabrication manufacturer. This full-lifecycle integration eliminates communication gaps between separate bare-board shops and assembly facilities, providing clear traceability and higher assembly yields for complex hardware projects. To explore our full product specifications, view our comprehensive directory of custom flexible PCB options.

5. Factory Industry Verticals: Tailoring Lines for Specialized Sourcing Demand

An elite partner must maintain production line flexibility to satisfy the divergent regulatory frameworks, testing standards, and electrical parameters required by different global industries. ApolloPCB structures its factory operations into dedicated production cells optimized for specific vertical markets:

Electric Mobility and Heavy-Current Power Management

The electric vehicle (EV) sector relies heavily on flexible circuitry to manage power routing within battery packs and energy storage systems. Operating as an elite energy solutions provider, ApolloPCB builds ultra-long flexible harnesses (exceeding 1.5 meters) engineered to monitor voltage and temperature profiles across individual battery cells in real time.

By utilizing heavy copper foils (up to 3 oz) bonded to robust polyimide substrates, these specialized battery harnesses carry cell-balancing currents safely without overheating. Transitioning from traditional, manually routed wire harnesses to an integrated multi-layer FPC strips away up to 70% of packaging volume and reduces vehicle weight by kilograms, directly extending driving range.

Autonomous Transport and Consumer Electronics

In the consumer and connectivity spaces, our manufacturing lines operate as high-volume production modules for mobile and tracking assets. These applications require extreme miniaturization, forcing line-and-space geometries down to 25 microns to route multi-gigabit data streams through narrow hinges and rotating pivots.

For commercial control systems and consumer electronics interfaces, our dedicated teams serve as high-yield fabricators of specialized keypad membranes and display vectors. Keypad arrays feature carbon-filled or hard-gold contact points that endure millions of continuous mechanical switch activations, while our continuous roll-to-roll lighting production cells manufacture long-length linear arrays without cumulative registration drift, ensuring uniform illumination across extensive architectural configurations.

6. Proactive Quality Assurance: E-E-A-T Sourcing Compliance

In high-reliability industrial sectors, component failure is not just an inconvenience—it can compromise passenger safety, disrupt production infrastructure, or cause millions of dollars in warranty liability. Therefore, an elite global manufacturer must back its hardware with transparent, data-driven quality metrics. ApolloPCB executes all manufacturing workflows under strict adherence to IPC-6013 Class 3 (Advanced High-Reliability Electronic Products) and IATF 16949 (Automotive Quality Management Systems) guidelines.

Our quality assurance department subjects every production batch to a strict non-destructive and destructive testing regimen prior to final shipment:

• Micro-Sectioning and Visual Core Analysis: Destructive cross-sectional analysis of manufacturing coupons processed alongside every production panel. High-magnification optical microscopes measure exact copper plating thicknesses inside microvias and verify the total absence of internal cracks, resin recession, or layer-to-layer misregistration.

• Dynamic Flex Cycling Verification: Finished production samples are locked into motorized flexing rigs that cycle the board under specified bend radii and speeds. Computerized multi-meters monitor trace resistance in real time, proving that the RA copper grain structure survives the mechanical lifecycle demands established in the product definition.

• 100% Netlist Electrical Testing: Automated flying probe systems or custom bed-of-nails fixtures test every independent net on every board against the original ECAD digital netlist. This process ensures that zero micro-shorts, latent open circuits, or insulation breakdowns exist within complex multi-layer designs.

This comprehensive quality control infrastructure provides international procurement departments, quality directors, and hardware teams with an authoritative layer of operational confidence. By maintaining clear material lot traceability, automated optical inspection records, and environmental test documentation for every production run, ApolloPCB delivers reliable pipelines that easily pass the most stringent corporate supplier audits.

Frequently Asked Questions (FAQ)

Q1: Can ApolloPCB handle custom stack-ups for multi-layer flexible circuits?

Yes. ApolloPCB specializes in engineering complex, custom multi-layer FPCs up to 8 layers using adhesiveless polyimide substrates, advanced laser microvias, and selective rigid FR4 or metal stiffeners to meet specific mechanical constraints.

Q2: What is your standard lead time for quick-turn automotive prototype runs?

For NPI prototyping and engineering validation samples, ApolloPCB can deliver functional, fully tested flexible PCB prototypes within 3 to 5 business days, depending on the complexity of the multi-layer layer-count.

Q3: Do you support full turnkey component assembly for flexible circuits?

Yes. As an integrated assembly manufacturer, ApolloPCB provides end-to-end turnkey SMT assembly services using custom-milled vacuum carrier plates and automated lead-free reflow profiling to guarantee flawless component attachment.

Conclusion: Partnering with ApolloPCB for Sourcing Success

As industrial electronics incorporate more advanced sensors, denser computing modules, and tighter mechanical enclosures, the demand for highly reliable flexible circuitry will continue to grow. Securing your market position requires moving past transactional part-brokers and partnering with an integrated manufacturer capable of executing advanced material science, complex multi-layer fabrication, and automated high-density SMT assembly.

ApolloPCB blends engineering expertise, advanced manufacturing infrastructure, and strict quality validation to eliminate supply chain fragmentation and protect your hardware investment from prototype to full-scale OEM deployment.
