Flexible Printed Circuit: High-Density OEM Solutions

The global electronics sector is undergoing a profound structural shift. As electronic product designers, hardware developers, and original equipment manufacturers (OEMs) attempt to maximize electrical and computing functionality within increasingly restricted physical dimensions, traditional unyielding rigid board layouts are hitting absolute mechanical boundaries. High-density component arrays, multi-gigabit high-speed data paths, and complex sensor clusters require advanced electronic connections that can navigate intricate, non-linear 3D geometries. Traditional wire tracking bundles and hand-soldered point connections, while pliable, present immense structural vulnerabilities, including high point-of-contact resistance, manual installation defects, parasitic capacitance drift, and substantial weight penalties—anomalies that modern high-reliability industrial hardware lines cannot afford to sustain.

To eliminate these spatial limitations, next-generation industrial systems rely heavily on the integration of the advanced flexible printed circuit. By utilizing ultra-thin polyimide substrates layered with highly ductile conductive foils, electrical engineers can deploy intricate electronic circuits that actively flex, bend, fold, and twist inside complex chassis configurations without experiencing trace fractures or signal degradation. This structural evolution eliminates the need for failure-prone plug-in wire harnesses and multi-board pin connectors, combining what used to be multiple separate boards into a single continuous electronic platform.

However, fabricating these intricate, high-density structures requires moving away from generalist bare-board fabricators. Managing the inherent dimensional instability of thin polymer films during chemical treatments and high-temperature lamination requires a highly specialized flexible printed circuit manufacturer.

ApolloPCB stands at the forefront of this technology space, providing advanced flexible printed circuit options alongside integrated full-lifecycle advanced FPC layouts engineered to reduce hidden logistics overhead and secure zero-defect Field MTBF across the most demanding operating conditions.

1. Sourcing Logistics: Analyzing the Global Ecosystem for Factory Sourcing

When supply chain directors, international procurement heads, and factory sourcing managers evaluate prospective vendors for high-volume automated product lines, they must look beyond simple per-unit costs. Sourcing high-layer flex hardware requires a deep assessment of regional engineering capabilities, raw material stock integration, and the technical support workflows available within the local manufacturing ecosystem. Selecting an improper partner from among global flexible printed circuit manufacturers can introduce chronic assembly delays, component alignment errors, and expensive field recalls.

Sourcing from a Flexible Printed Circuit Manufacturer in China

Sourcing electronic hardware from a prominent flexible printed circuit manufacturer china delivers major structural advantages regarding material speed, cost optimization, and supply chain scale that cannot be replicated in alternative manufacturing corridors. The electronics manufacturing clusters in South China host the world's most concentrated network of raw material providers, specialized roll-to-roll (R2R) lamination lines, high-vacuum chemical treatment facilities, and precision optical inspection developers.

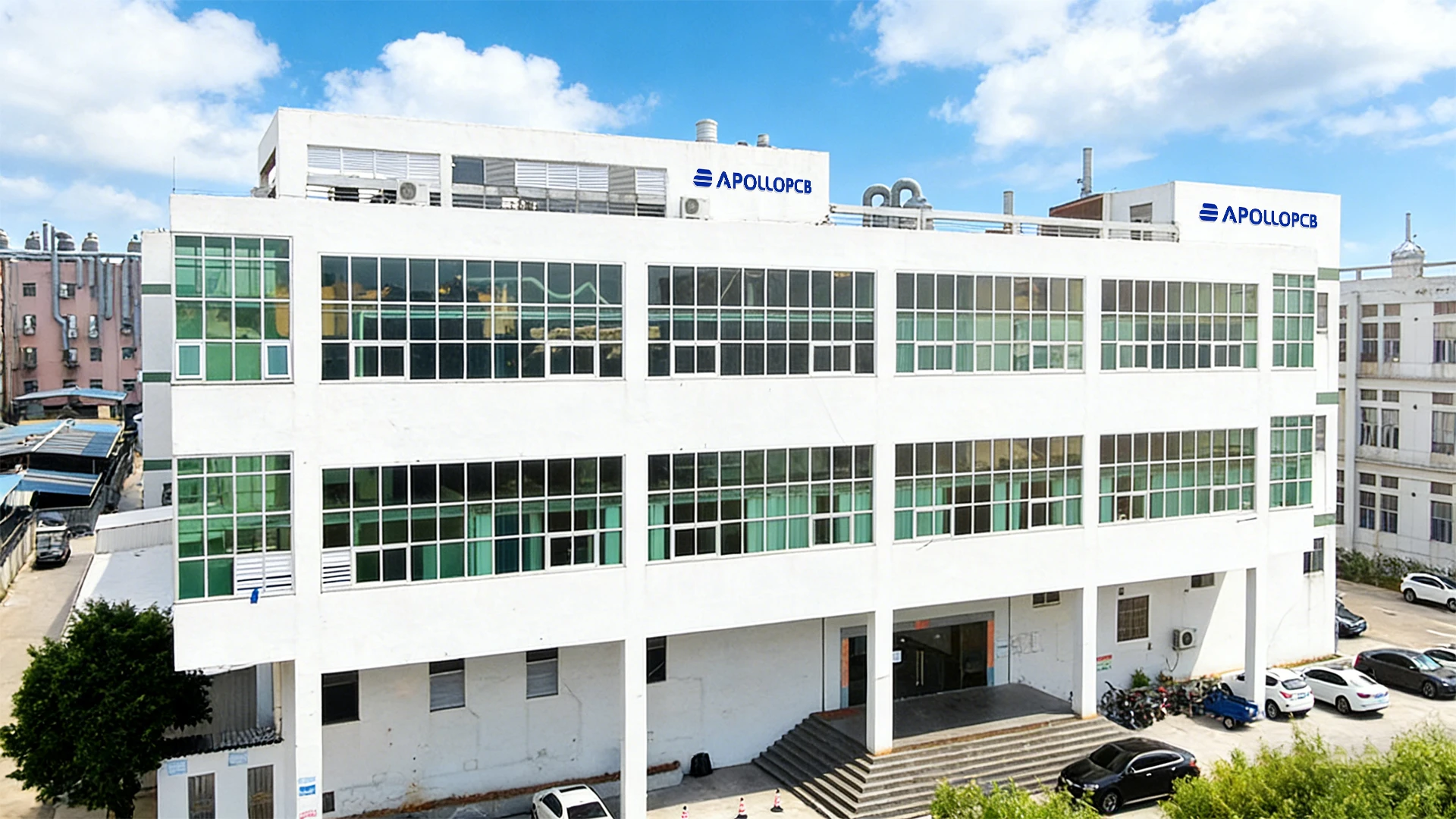

Operating as a strategic flexible printed circuit supplier, ApolloPCB leverages this integrated regional infrastructure to isolate our global B2B clients from supply chain vulnerabilities. Our direct factory integration with tier-1 material producers allows us to maintain deep stocks of advanced adhesiveless copper-clad laminates and high-purity polyimide tracking films, ensuring stable lead times and isolating clients from material price spikes.

Furthermore, this concentrated manufacturing ecosystem enables us to compress complex New Product Introduction (NPI) loops, executing rapid engineering iterations that transition into automated mass-production runs on our high-capacity production floors.

Sourcing in Western and Emerging Onshore Markets

Enterprise supply chain strategists routinely audit alternative regional sourcing corridors to build multi-vendor risk-mitigation profiles, balancing the tradeoffs against established global production centers:

• Flexible Printed Circuit Manufacturer United States: Domestic fabrication facilities in Western onshore markets are highly localized and typically optimized for low-volume, specialized aerospace prototyping or defense-grade development. However, when an industrial design matures past engineering validation and requires scaling up to monthly deliveries of tens of thousands of units, domestic Western lines often lack the automated roll-to-roll (R2R) high-capacity equipment networks needed to sustain high-throughput manufacturing, resulting in exceptionally high unit costs and significant scaling friction.

• Flexible Printed Circuit Manufacturer in India / Flexible Printed Circuit Manufacturers in India: The South Asian industrial corridor is expanding its domestic assembly footprint through substantial infrastructure investments. However, the local ecosystem for advanced raw material fabrication—such as sub-100μm adhesiveless base copper layers and ultra-thin coverlays—remains heavily reliant on East Asian imports. This extended raw material loop can introduce lead-time unpredictability and increased overhead costs during critical rapid-scaling product rollouts.

For international technology factories focused on minimizing Total Cost of Ownership (TCO) while securing a stable, highly scalable product pipeline, the most efficient strategy combines localized Western engineering definitions with the high-capacity, zero-defect execution of an established offshore manufacturing partner.

2. Advanced Material Science: Mitigating Mechanical Fatigue and Open-Circuit Failures

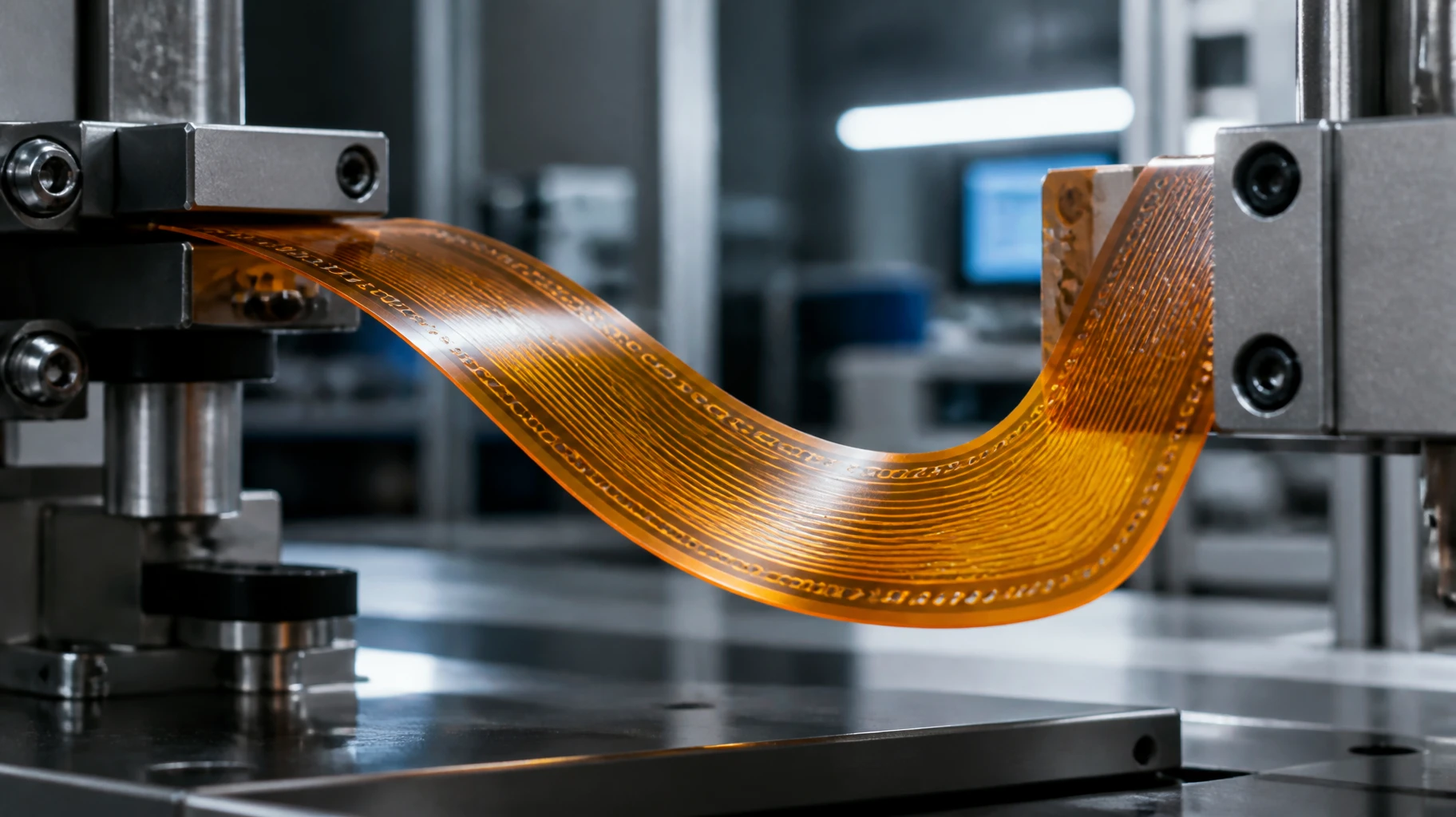

A modern flexible printed circuit board is fundamentally an active mechanical component that must simultaneously function as a high-frequency electrical conduit. Because an FPC is engineered to experience repetitive bending, structural vibrations, and geometric folding across its operational lifespan, its long-term reliability depends entirely on the material science embedded within its base substrate layer stack-up.

Adhesiveless vs. Adhesive-Backed Base Substrates

Traditional flexible printed circuit fabrication historically relied on 3-layer Flexible Copper Clad Laminates (FCCL), which use an organic adhesive layer (typically an acrylic or butyral epoxy resin) to bond the conductive copper foil to the structural polyimide (PI) core film. While cost-effective for simple, static "bend-and-stay" configurations, these adhesive layers represent a major vulnerability in high-reliability industrial applications:

• Z-Axis Thermal Expansion Stress: Acrylic adhesives exhibit an exceptionally high Coefficient of Thermal Expansion (CTE). When subjected to the high temperatures of lead-free SMT reflow assembly (peaking at 260°C), the adhesive expands aggressively along the Z-axis, placing severe upward stress on plated through-holes (PTH) and microvias, frequently leading to latent, field-induced open-circuit failures.

• Mechanical Elasticity Degradation: The inclusion of an adhesive layer increases the total profile thickness of the circuit stack-up. This extra thickness increases the overall stiffness of the board and degrades its minimum allowable bend radius, causing accelerated fatigue cracking under dynamic flexing conditions.

• High-Frequency Insertion Losses: Acrylic adhesives possess significantly higher dielectric constants (Dk) and dissipation factors (Df) than pure polyimide. This material limitation introduces unacceptable insertion losses, signal distortion, and impedance mismatches in high-frequency, multi-gigabit data transmission lines.

To eliminate these performance bottlenecks, ApolloPCB focuses on the processing of 2-layer adhesiveless FCCL substrates for advanced flexible printed circuits. By utilizing advanced cast or cast-on-copper lamination techniques, the copper foil is bonded directly to the polyimide core on a molecular level without any structural adhesive. This advanced material configuration delivers an ultra-thin board profile, doubles the dynamic flex cycling life, lowers the dielectric breakdown risk, and provides a uniform, low-loss medium optimized for high-speed digital routing.

Metallurgical Ductility: ED vs. RA Copper

The metallurgical classification of the copper foil specified in the design files dictates how well the FPC will tolerate structural bending strain. High-volume manufacturing facilities handle two distinct copper classifications:

• Electro-Deposited (ED) Copper: Manufactured via an electrolytic plating process, ED copper exhibits a vertical, columnar grain structure. While excellent for rigid boards and static installations, it is relatively brittle. Under continuous mechanical flexing, these vertical grain boundaries act as micro-fissure propagation pathways, causing traces to snap cleanly under cyclic strain.

• Rolled Annealed (RA) Copper: Fabricated by running heavy copper ingots through high-pressure mechanical rollers, RA copper features an elongated, horizontal grain structure oriented parallel to the board surface. This horizontal grain matrix makes RA copper exceptionally ductile. When oriented properly relative to the primary bend axis, RA copper can withstand millions of severe dynamic flexing cycles without experiencing work-hardening or structural failure.

3. High-Density Interconnect (HDI) Technologies in Flex Fabrication

Executing multi-layer high-density interconnect (HDI) routing within a complex layout requires an advanced layout architecture. By utilizing stacked blind and buried microvias, engineers can compress trace layouts, eliminate parasitic capacitance, and secure high-frequency signal propagation.

To explore how these advanced micro-architectures are applied to next-generation electronic footprints, review our technical deployment manuals on FPCB 3D design flexibility paradigms and our operational blueprints for flexible circuit precision engineering models.

Operating as an authoritative developer of the advanced blind and buried vias flexible printed circuit, ApolloPCB uses dual-source (UV/CO2) laser drilling systems to form microvias down to 50μm in diameter through mixed polymer stack-ups. The panels pass through gas plasma desmear chambers to clean out resin residue on a molecular level before entering periodic-reverse pulse copper electroplating baths.

This advanced metallization ensures uniform copper plating thickness inside the microvias without over-plating the surface tracks, supporting via-in-pad structures that unlock maximum space optimization for ultra-dense packaging components.

4. The Complete Step-by-Step Flexible Printed Circuit Fabrication Process

Building a multi-layer fpc flexible printed circuit requires specialized, highly automated production lines and deep process engineering. Because unreinforced polyimide film is highly hygroscopic and dimensionally unstable, environmental factors such as ambient humidity, chemical bath temperatures, and mechanical transport tension must be continuously controlled across our manufacturing facilities.

The complete fabrication pipeline follows a strict sequence of chemical, thermal, and optical processing steps:

Step 1: Pre-Baking and Material Dehydration

Raw polyimide panels naturally absorb moisture from the surrounding atmosphere due to their open molecular structure. Before entering the photolithography line, all material batches undergo a mandatory, multi-hour vacuum dehydration bake at 120°C. This process stabilizes the polymer matrix and minimizes dimensional shrinkage or warping during subsequent high-temperature wet chemical processing steps.

Step 2: Laser Direct Imaging (LDI) Photolithography

Traditional physical film photomasks are highly prone to thermal stretching and misregistration errors when applied to flexible sheets. ApolloPCB avoids these limitations by utilizing state-of-the-art Laser Direct Imaging (LDI) systems across our flexible printed circuit fabrication lines. The digital CAD circuit layout is written directly onto the photoresist-coated copper layer via a computer-controlled UV laser beam. The LDI system utilizes automated optical registration cameras to track alignment markers on the flexible panel in real time, automatically adjusting the laser path to compensate for any micro-scale material distortion.

Step 3: Precision Etching and Fine-Line Control

The exposed panel passes through a computerized acid etching chamber where unexposed copper is removed to reveal the circuit traces. For advanced high-density applications, our chemical lines maintain strict fluid-dynamics and spray-pressure control, allowing us to cleanly execute ultra-fine line-and-space tolerances down to 25μm without causing trace undercutting or residual copper bridges.

Step 4: Coverlay Alignment and Vacuum Hydraulic Lamination

Rather than using a liquid photoimageable solder mask, flexible boards utilize a solid polyimide film coated with a thermosetting adhesive, known as a coverlay, to protect the delicate copper traces from oxidation, dust, and moisture ingress. The coverlay access windows are precision pre-cut via high-speed UV laser routers.

Next, technicians align the coverlay sheet over the etched copper traces using high-magnification split-vision optical systems. The aligned panels are loaded into an automated vacuum hydraulic press. The press applies a carefully calibrated temperature-ramping profile under heavy pressure, forcing the coverlay adhesive to flow uniformly into the complex spaces between the copper traces without creating air pockets, voids, or coverlay displacement. To secure maximum longevity for your production infrastructure, partnering with a premier partner like ApolloPCB ensures elite control over flexible printed circuit manufacturing services pipelines.

Step 5: Advanced Surface Finish Plating

To guarantee uniform solder joints during final SMT assembly, the exposed copper pads must be plated with a protective surface finish. While standard Electroless Nickel Immersion Gold (ENIG) is available, for high-vibration applications or designs that incorporate direct wire bonding, we deploy Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG). ENEPIG provides an ultra-flat surface profile, prevents the brittle intermetallic failures often referred to as "black pad," and forms an exceptional platform for high-precision wire bonding.

Step 6: UV Laser Profiling and Contour Excision

The finished multi-board panels are excised into their final independent shapes using precision UV laser routing systems. Laser profiling ensures completely clean, burr-free edges with zero mechanical stress or micro-tearing introduced to the outer polyimide border, which is critical since edge burrs can act as stress-concentration points that crack under repetitive flexing. Every completed board then undergoes 100% automated optical inspection (AOI) and high-voltage electrical continuity testing before final packaging.

5. Micro-Packaging Integration: SMT Assembly and Industry Workflows

A perfectly fabricated bare board is only half of the hardware equation. Transforming a raw polyimide sheet into a functioning sub-assembly requires specialized component placement, custom tooling, and rigorous process discipline. If components are attached incorrectly, the thermal stress of assembly can destroy the substrate, or the mechanical strain of field deployment will crack the solder joints.

Overcoming the SMT Handling Challenge

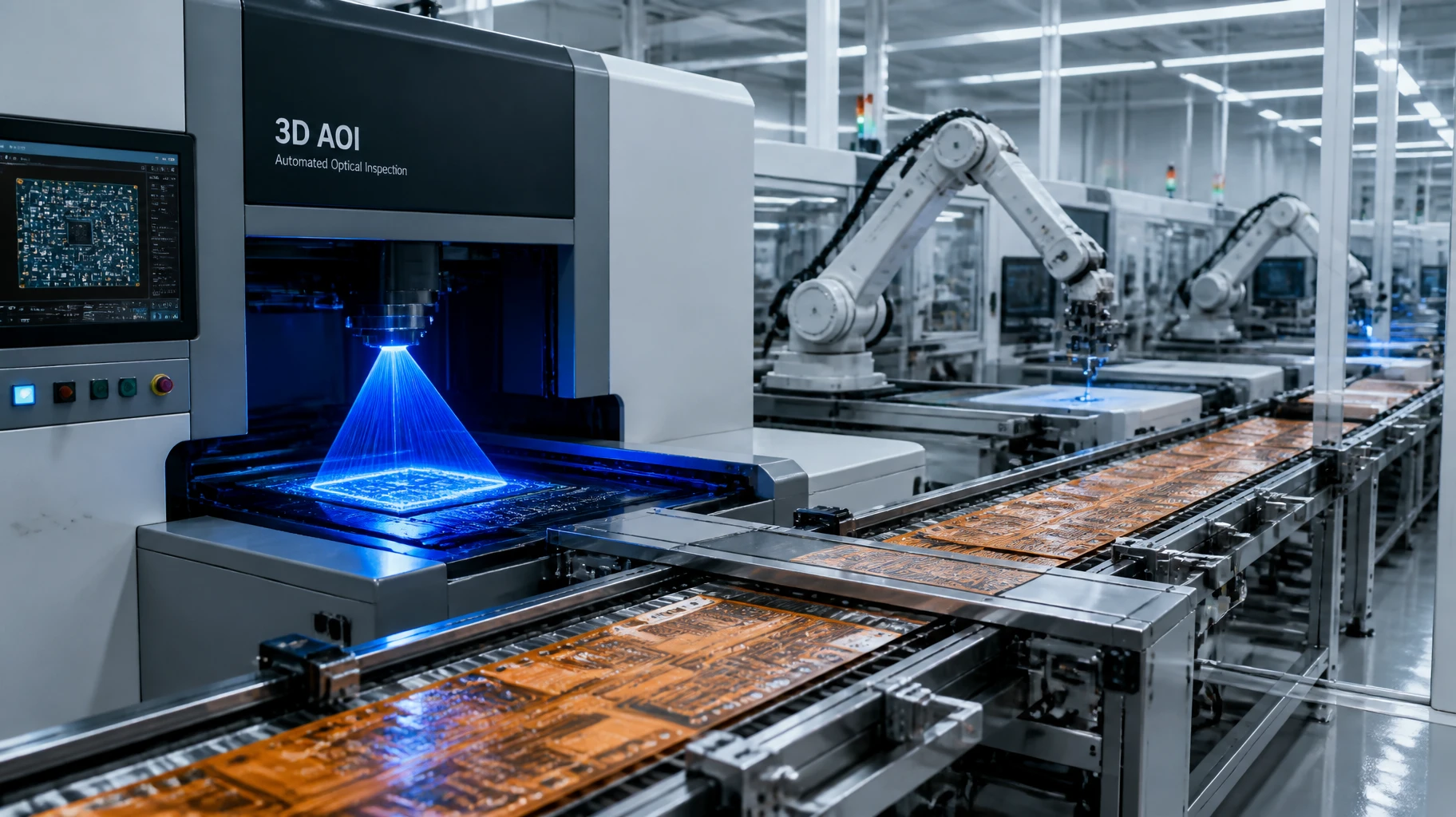

Because bare flexible circuits are pliable and thin, they cannot pass through standard high-speed Surface Mount Technology (SMT) pick-and-place conveyors or solder paste printers without warping, vibration, or shifting out of plane.

To achieve precise component placement, ApolloPCB operates as a fully integrated provider of Flexible Printed Circuit Board Assembly services. Our SMT lines utilize custom-machined aluminum or magnetic vacuum carrier fixtures to hold each flexible panel completely flat throughout the entire component attachment pipeline:

• Solder Paste Printing: The carrier fixture locks the FPC flat under tension, ensuring uniform solder paste deposits across ultra-fine-pitch component pads, preventing solder bridging or starvation.

• Pick-and-Place Accuracy: Automated optical alignment systems read fiducial markers directly on the FPC surface, allowing placement nozzles to accurately mount micro-BGAs, chip-scale packages (CSPs), and 01005 passives onto fine-pitch footprints.

• Reflow Temperature Profiling: Because flexible polyimide has a much lower thermal mass than rigid FR4 boards, it absorbs heat rapidly. Our multi-zone, lead-free reflow ovens utilize custom-calibrated thermal profiles that ensure complete solder reflow while keeping peak temperatures within strict safety envelopes to prevent polyimide blistering or trace de-lamination.

Tailoring Assembly Workflows for Specialized Sector Demands

Operating as a versatile flexible printed circuit assembler, our production environment structures its component placement parameters to align with distinct sector compliance guidelines:

• LED Lighting Flexible Printed Circuit Systems: Solid-state lighting modules and architectural displays require exceptionally long, linear form factors. Our factory modules deploy continuous roll-to-roll (R2R) assembly lines that process circuits exceeding 5 meters in length without cumulative registration drift, ensuring uniform illumination profiles and integrated thermal track backings to prevent heat accumulation.

• High-Density Consumer and Mobile Packaging: For space-constrained consumer deployments, we function as a high-yield smartphone FPC manufacturer. These modules require trace geometries down to 25μm to route complex signals through narrow hinges. Our lines integrate localized FR4 or stainless steel stiffeners beneath micro-BGA footprints using thermosetting adhesives, allowing the FPC to easily handle high mechanical insertion forces during final product configuration.

6. Proactive Quality Assurance: E-E-A-T Sourcing Compliance

In high-reliability industrial sectors, component failure is not just an inconvenience—it can compromise passenger safety, disrupt production infrastructure, or cause millions of dollars in warranty liability. Therefore, an elite global manufacturer must back its hardware with transparent, data-driven quality metrics. ApolloPCB executes all manufacturing workflows under strict adherence to IPC-6013 Class 3 (Advanced High-Reliability Electronic Products) and IATF 16949 (Automotive Quality Management Systems) guidelines.

Our quality assurance department subjects every production batch to a strict non-destructive and destructive testing regimen prior to final shipment:

• Micro-Sectioning and Visual Core Analysis: Destructive cross-sectional analysis of manufacturing coupons processed alongside every production panel. High-magnification optical microscopes measure exact copper plating thicknesses inside microvias and verify the total absence of internal cracks, resin recession, or layer-to-layer misregistration.

• Dynamic Flex Cycling Verification: Finished production samples are locked into motorized flexing rigs that cycle the board under specified bend radii and speeds. Computerized multi-meters monitor trace resistance in real time, proving that the RA copper grain structure survives the mechanical lifecycle demands established in the product definition.

• 100% Netlist Electrical Testing: Automated flying probe systems or custom bed-of-nails fixtures test every independent net on every board against the original ECAD digital netlist. This process ensures that zero micro-shorts, latent open circuits, or insulation breakdowns exist within complex multi-layer designs.

This comprehensive quality control infrastructure provides international procurement departments, quality directors, and hardware teams with an authoritative layer of operational confidence. By maintaining clear material lot traceability, automated optical inspection records, and environmental test documentation for every production run, ApolloPCB delivers reliable pipelines that easily pass the most stringent corporate supplier audits.

Frequently Asked Questions (FAQ)

Q1: What unique advantages do adhesiveless laminates offer in flex fabrication?

Adhesiveless laminates eliminate the acrylic or epoxy adhesive layer used in traditional 3-layer stack-ups. This structural elimination lowers the Z-axis thermal expansion profile, eliminates microvia plating fractures during 260°C lead-free SMT reflow, and provides significantly lower dielectric losses for high-frequency signal transmission.

Q2: How does ApolloPCB prevent component solder joint cracking on flexible tracking?

ApolloPCB utilizes automated precision alignment systems to apply localized rigid FR4 or aluminum stiffeners directly beneath high-stress component footprints. Furthermore, for high-vibration applications, we apply low-viscosity capillary underfills beneath BGA components to redistribute mechanical stress away from fragile solder joints.

Q3: What is the standard lead time for a custom flex prototype run?

Our dedicated NPI prototyping division can deliver fully functional, 100% netlist-tested flexible circuit engineering prototypes within 3 to 5 business days, ensuring your hardware design transitions quickly through early verification stages.

Conclusion: Partnering with ApolloPCB for Sourcing Success

As global industrial infrastructure incorporates more advanced sensor modules, denser processing chips, and tighter non-linear enclosures, the demand for highly reliable flexible circuitry will continue to expand. Securing your market position requires moving past transactional part-brokers and partnering with an integrated manufacturer capable of executing advanced material science, complex multi-layer fabrication, and automated high-density SMT assembly.

ApolloPCB blends engineering expertise, advanced manufacturing infrastructure, and strict quality validation to eliminate supply chain fragmentation and protect your hardware investment from prototype to full-scale OEM deployment.

Ready to eliminate field failures, reduce hidden logistical overhead, and compress your product development timeline? Request an instant custom flexible printed circuit quote from the ApolloPCB engineering team today, and discover how our integrated prototype-to-production solutions can drive value for your business platform.
