In the fast - paced realm of modern electronics, the continuous drive for enhanced functionality, miniaturization, and reliability has spurred the development of advanced printed circuit board (PCB) technologies. Among these, metal core printed circuit boards (MCPCBs) have emerged as a pivotal innovation, revolutionizing the way electronic devices manage heat and optimize electrical performance. This article delves deep into the world of metal core PCBs, covering their fundamental aspects, design considerations, manufacturing processes, advantages, applications, and future trends.

Definition and Basics of Metal Core PCBs

What is a Metal Core PCB?

A metal core PCB, as the name implies, is a type of PCB that incorporates a metal layer as its core. This is in contrast to traditional PCBs, which commonly use materials like FR - 4 (a fiberglass - reinforced epoxy laminate) as the substrate. The metal core in an MCPCB serves multiple crucial functions, with heat dissipation being one of the most prominent. Metals such as aluminum and copper are frequently used for the core due to their high thermal conductivity.

Structure of Metal Core PCBs

Typically, a metal core PCB has a three - layer structure. The bottom layer is the metal core, which acts as a heat sink. Aluminum is a popular choice for the metal core in many applications because of its good thermal conductivity, relatively low cost, and lightweight nature. Copper, on the other hand, offers even higher thermal conductivity but may be more expensive.

Above the metal core is a dielectric layer. This layer is made of an insulating material, such as a thermally conductive epoxy resin. Its primary function is to electrically isolate the metal core from the top - most layer while still allowing heat to transfer through. The dielectric layer's properties, including its thermal conductivity and dielectric constant, are carefully selected to balance electrical insulation and thermal management requirements.

The top layer is the copper layer, where the electrical traces are etched. These traces form the circuit pathways that connect various electronic components on the PCB. The copper layer is designed to carry electrical currents efficiently and is also involved in heat transfer, as it can conduct heat generated by components to the underlying dielectric layer and then to the metal core.

Types of Metal Core PCBs

Single - Layer Metal Core PCBs

Single - layer metal core PCBs have a simple structure with a single copper layer on one side of the board. A dielectric layer separates this copper layer from the metal core beneath. This type of MCPCB is commonly used in applications where heat dissipation is crucial and the circuit complexity is relatively low. For example, in many LED lighting applications, single - layer metal core PCBs are used. The aluminum core on the opposite side of the copper layer, which has the LED components mounted, effectively dissipates the heat generated by the LEDs, ensuring their long - term reliability and stable performance.

Double - Layer Metal Core PCBs

Double - layer metal core PCBs have two copper layers. In one configuration, both copper layers are on the same side of the metal core, separated from each other by additional dielectric layers. This design can be useful in applications where there is a need for more complex circuitry on one side of the board while still leveraging the heat - dissipating capabilities of the metal core.

In another type of double - layer MCPCB, known as a double - sided metal core PCB, the two copper layers are on opposite sides of the metal core. The metal core is located in the middle of the layer stack, and each copper layer is separated from the metal core by a dielectric layer. This design allows for component placement and circuit routing on both sides of the board, increasing the overall circuit density and functionality. It is often used in more advanced electronic devices where space is at a premium and efficient heat management is still required.

Multi - Layer Metal Core PCBs

Multi - layer metal core PCBs feature multiple copper layers, with each layer separated by a dielectric material. The metal core is usually at the bottom of the layer stack. This type of PCB is highly suitable for applications that demand a high level of circuit complexity and integration. However, manufacturing multi - layer metal core PCBs is more challenging compared to their single - layer or double - layer counterparts. The difficulty lies in processing the metal core material while ensuring proper alignment and connection between the multiple layers. Despite the challenges, multi - layer metal core PCBs are increasingly being used in high - end applications such as aerospace electronics, where compact size, high - performance, and reliable heat management are essential.

Metal Core PCB Design Considerations

Thermal Management Design

Thermal management is a critical aspect of metal core PCB design. Since the primary advantage of an MCPCB is its ability to dissipate heat, careful consideration must be given to how heat is generated, transferred, and dissipated within the board.

When choosing the metal core material, its thermal conductivity is a key factor. As mentioned earlier, aluminum and copper are popular choices, but the specific application requirements will determine which one is more suitable. For example, in applications where cost is a major constraint but decent heat dissipation is still needed, aluminum may be preferred. In high - performance applications where every bit of thermal conductivity matters, copper might be the better option.

The thickness of the metal core also affects heat dissipation. A thicker metal core can generally dissipate more heat, but it may also increase the weight and cost of the PCB. Therefore, a balance needs to be struck based on the application's requirements. Additionally, the layout of components on the PCB should be designed to optimize heat transfer. Heat - generating components should be placed in close proximity to the metal core or in areas where thermal vias can efficiently transfer heat to the core.

Electrical Design

In addition to thermal management, proper electrical design is essential for metal core PCBs. The copper traces on the PCB need to be designed to carry the required electrical currents without excessive voltage drops. The width of the copper traces is determined by the current - carrying capacity requirements. Thicker traces can carry more current but may also take up more space on the PCB.

Signal integrity is another important consideration, especially in high - frequency applications. The presence of the metal core can affect the electrical characteristics of the PCB, such as impedance. Designers need to carefully calculate and control the impedance of the traces to ensure proper signal transmission. This may involve adjusting the trace width, the distance between traces, and the thickness of the dielectric layer.

Mechanical Design

Mechanical design aspects are also crucial for metal core PCBs. The metal core provides added mechanical strength to the PCB, but it also needs to be considered in terms of how the PCB will be mounted and integrated into the overall device. The thickness and rigidity of the PCB, which are influenced by the metal core, can affect the choice of mounting methods.

Moreover, when designing for applications that may be subject to vibrations or mechanical stress, such as in automotive or industrial environments, the mechanical integrity of the PCB needs to be ensured. This may involve adding mechanical reinforcements, such as mounting holes or stiffeners, and choosing materials that can withstand the expected mechanical forces.

Manufacturing Processes of Metal Core PCBs

Metal Core Preparation

The first step in manufacturing a metal core PCB is preparing the metal core. This involves cleaning the metal surface to remove any impurities, oxides, or contaminants that could affect the adhesion of the subsequent layers. The metal may also undergo surface treatments, such as anodizing in the case of aluminum, to improve its corrosion resistance and adhesion properties.

Dielectric Layer Application

After the metal core is prepared, a dielectric layer is applied. This can be done through various methods, such as laminating a pre - cured dielectric film onto the metal core or applying a liquid dielectric material and curing it. The dielectric layer needs to be applied evenly and with the correct thickness to ensure proper electrical insulation and thermal transfer. Precise control of the dielectric layer's thickness is crucial, as it affects both the electrical and thermal performance of the PCB.

Copper Foil Lamination

Once the dielectric layer is in place, a copper foil is laminated onto it. The copper foil is typically pre - etched with the desired circuit pattern or will be etched after lamination. Lamination is usually carried out using heat and pressure to ensure a strong bond between the copper foil and the dielectric layer. The quality of the lamination process is critical, as any voids or delaminations can lead to electrical and thermal issues in the final PCB.

Circuit Patterning and Etching

If the copper foil was not pre - etched, the next step is to pattern the circuit. This is often done using photolithography techniques. A photosensitive resist is applied to the copper foil, and then it is exposed to ultraviolet light through a patterned mask. The exposed areas of the resist are then developed, leaving behind the desired circuit pattern. After that, an etching process is used to remove the unwanted copper, leaving only the copper traces that form the circuit.

Solder Mask and Surface Finish Application

A solder mask is applied over the copper traces to protect them from oxidation and to prevent solder bridges during component soldering. The solder mask has openings at the component pads to allow for soldering. After the solder mask is applied, a surface finish is added to the exposed copper areas. Common surface finishes include hot air solder leveling (HASL), electroless nickel immersion gold (ENIG), and organic solderability preservative (OSP). The surface finish is chosen based on factors such as solderability, corrosion resistance, and cost.

 Final Fabrication and Quality Control

The PCB is then fabricated to its final shape and size, which may involve drilling holes for components, mounting, or vias. After fabrication, rigorous quality control checks are performed. These checks include visual inspection for any defects in the circuit pattern, solder mask, or surface finish. Electrical testing is also carried out to ensure that the circuits are functioning properly, and thermal testing may be done to verify the heat - dissipating capabilities of the PCB.

Advantages of Metal Core PCBs

Superior Thermal Management

The most significant advantage of metal core PCBs is their excellent thermal management capabilities. The metal core can quickly transfer heat away from heat - generating components, such as high - power LEDs, power transistors, or integrated circuits. This efficient heat dissipation helps to prevent overheating, which can cause component failures and reduce the lifespan of electronic devices. By maintaining lower operating temperatures, metal core PCBs enhance the reliability and performance of the overall electronic system.

High Power Handling Capacity

Metal core PCBs are well - suited for high - power applications. The ability to dissipate heat effectively allows these PCBs to handle higher power levels without experiencing thermal runaway. In power electronics applications, such as inverters, converters, and power supplies, metal core PCBs can ensure stable operation under high current and voltage conditions. This high power handling capacity enables the design of more compact and efficient power - related electronic devices.

Improved Mechanical Strength

The metal core provides added mechanical strength and rigidity to the PCB. This makes metal core PCBs more resistant to physical stress, vibrations, and impacts compared to traditional PCBs. In applications where the PCB may be subject to harsh mechanical environments, such as in automotive, industrial, or aerospace applications, the enhanced mechanical strength of metal core PCBs is a significant advantage. It helps to ensure the long - term reliability of the PCB and the electronic device it is part of.

Design Flexibility

Metal core PCBs offer greater design flexibility. The metal core can act as a stable base for component placement, allowing for more complex circuit designs. Designers can place high - power components and surface - mount devices (SMDs) in close proximity to the metal core to take advantage of its heat - dissipating properties. Additionally, the ability to use different types of metal cores and adjust the thickness of the various layers provides more options for optimizing the PCB's performance based on the specific application requirements.

Applications of Metal Core PCBs

LED Lighting

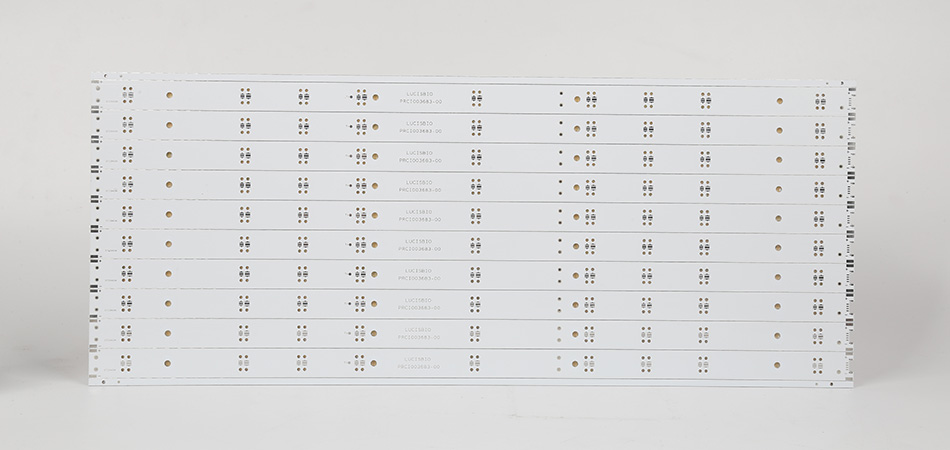

Metal core PCBs are extensively used in the LED lighting industry. LEDs generate heat during operation, and proper heat management is crucial for their performance and lifespan. Metal core PCBs with aluminum cores are commonly used in LED bulbs, strips, and high - power LED fixtures. The metal core efficiently dissipates the heat generated by the LEDs, ensuring consistent brightness and long - term reliability. In addition, the electrical insulation provided by the dielectric layer in the metal core PCB prevents short circuits, making it a safe and effective solution for LED lighting applications.

Power Electronics

In power electronics, metal core PCBs are widely employed in devices such as motor drives, inverters, and power supplies. These devices often handle high currents and voltages, generating significant amounts of heat. Metal core PCBs can effectively manage this heat, ensuring the reliable operation of power - handling components. For example, in a solar inverter, the metal core PCB helps to dissipate the heat generated during the conversion of DC power from solar panels to AC power for grid connection. The high power handling capacity and thermal management capabilities of metal core PCBs make them essential in power electronics applications.

Automotive Industry

The automotive industry is increasingly relying on metal core PCBs. In modern vehicles, there are numerous electronic systems, including engine control units (ECUs), LED headlights, power modules, and battery management systems. These systems require PCBs that can withstand the harsh environmental conditions in a vehicle, such as high temperatures, vibrations, and electrical noise. Metal core PCBs, with their excellent thermal management, mechanical strength, and electrical performance, are well - suited for automotive applications. They help to ensure the reliable operation of critical automotive systems, contributing to vehicle safety and performance.

Aerospace and Defense

Aerospace and defense applications have stringent requirements for electronic components in terms of reliability, thermal management, and mechanical durability. Metal core PCBs are used in avionics systems, radar equipment, satellites, and military - grade devices. The ability of metal core PCBs to handle extreme temperatures, vibrations, and high - altitude conditions makes them ideal for these applications. In satellite electronics, for example, metal core PCBs help to manage the heat generated by onboard electronics while ensuring the integrity of the electrical circuits in the harsh space environment.

Consumer Electronics

With the growing demand for smaller and more powerful consumer electronic devices, metal core PCBs are finding their way into smartphones, tablets, and laptops. These devices often have high - performance processors and other components that generate heat. Metal core PCBs enable efficient heat dissipation, preventing overheating issues and ensuring optimal performance. In a smartphone, for instance, the metal core PCB can help to keep the battery and the processor cool during intensive usage, such as gaming or video streaming, improving the user experience and extending the device's lifespan.

Medical Devices

In the medical industry, metal core PCBs are used in medical imaging equipment, such as X - ray machines and MRI scanners. These devices require precise circuitry and effective thermal management to ensure accurate and reliable diagnostics. Metal core PCBs provide the necessary stability and thermal efficiency. In an MRI scanner, the metal core PCB helps to manage the heat generated by the high - power electronics while maintaining the integrity of the sensitive electrical signals involved in image acquisition, contributing to high - quality medical imaging.

Future Trends of Metal Core PCBs

New Materials and Technologies

Researchers are constantly exploring new materials to further enhance the performance of metal core PCBs. For example, the use of graphene or other advanced nanomaterials in the metal core or dielectric layer is being investigated. Graphene, with its extremely high thermal conductivity, has the potential to significantly improve the heat - dissipating capabilities of metal core PCBs. Additionally, new manufacturing technologies, such as additive manufacturing (3D printing), may be applied to metal core PCB production. 3D printing could enable more complex and customized PCB designs, allowing for better optimization of thermal and electrical performance.

Integration with Other Technologies

Metal core PCBs are likely to be increasingly integrated with other emerging technologies. In the context of the Internet of Things (IoT), where a large number of devices need to be connected and operate efficiently, metal core PCBs can play a crucial role in providing the necessary power management and heat dissipation for IoT sensors and actuators. In the field of electric vehicles (EVs), metal core PCBs will continue to be essential for the development of more efficient power electronics and battery management systems. As these technologies evolve, metal core PCBs will need to adapt and integrate with them to meet the growing demands for high - performance, compact, and reliable electronic systems.

Miniaturization and Higher Density

The trend towards miniaturization and higher circuit density will continue to drive the development of metal core PCBs. As electronic devices become smaller and more powerful, there is a need for PCBs that can pack more functionality into a smaller space while still effectively managing heat. Metal core PCBs will need to be designed with even smaller feature sizes, thinner layers, and more efficient thermal vias to achieve higher circuit densities without sacrificing thermal or electrical performance. This will require continuous innovation in design, materials, and manufacturing processes.

Conclusion

Metal core printed circuit boards have become an integral part of modern electronics, offering unique advantages in thermal management, power handling, mechanical strength, and design flexibility. Their applications span a wide range of industries, from LED lighting and power electronics to automotive, aerospace, consumer electronics, and medical devices. As technology continues to advance, metal core PCBs are expected to evolve further, with the development of new materials, integration with emerging technologies, and a focus on miniaturization and higher density. The future of metal core PCBs holds great promise, and they will undoubtedly play a crucial role in enabling the next generation of high - performance electronic devices.
