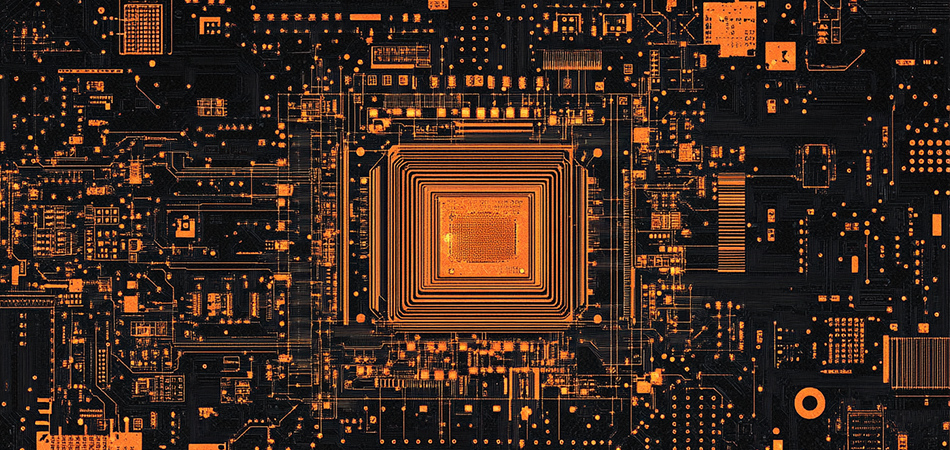

CEM3 PCB with Low Coefficient of Expansion: Enhancing Reliability in Temperature-Fluctuating Environments

CEM3 PCB with Low Coefficient of Expansion (CTE) represents a critical advancement in substrate technology, addressing a longstanding challenge in electronics: thermal-induced stress. In environments where temperatures swing dramatically—from industrial factories to automotive engine bays—components and PCBs expand and contract at different rates, leading to solder joint fatigue, delamination, or even complete failure. Traditional CEM3, while reliable in stable conditions, exhibits a higher CTE that can compromise performance under thermal stress. By engineering CEM3 to have a lower CTE, manufacturers have created a substrate that minimizes dimensional changes, ensuring components remain securely bonded and aligned regardless of temperature fluctuations. This article examines the science behind low-CTE CEM3, its material innovations, manufacturing techniques, and applications in industries where thermal stability is non-negotiable.

The Impact of Thermal Expansion on PCB Reliability

Thermal expansion—the tendency of materials to change size with temperature—is a primary driver of PCB failure in dynamic environments. When a PCB heats up, its substrate expands; as it cools, it contracts. If the substrate’s CTE mismatches that of mounted components (e.g., semiconductors, connectors), the resulting stress can:

Crack Solder Joints: Solder, which connects components to the PCB, is brittle and prone to fatigue when subjected to repeated expansion/contraction cycles. A mismatch of just 5 ppm/°C between the PCB and a component can cause solder joints to fail after 1,000–2,000 thermal cycles.

Delaminate Layers: CEM3’s layered structure—glass fibers and epoxy resin—can separate (delaminate) if the layers expand at different rates. This weakens the PCB mechanically and disrupts electrical pathways.

Warp the Substrate: Uneven expansion across the PCB can cause warping, misaligning components and creating gaps that affect electrical contact. In high-density PCBs, this can lead to short circuits or signal loss.

For applications like automotive under-hood electronics (temperatures ranging from -40°C to 125°C) or industrial ovens (operating at 80–150°C), these issues are amplified, making low-CTE substrates essential.

Material Innovations Enabling Low-CTE CEM3

Reducing CEM3’s CTE requires modifying its composition to resist dimensional changes, achieved through strategic adjustments to fibers, resin, and their interaction:

High-Modulus Glass Fibers

Traditional CEM3 uses standard E-glass fibers, which have a moderate modulus (stiffness). Low-CTE variants replace these with high-modulus glass fibers (e.g., S-glass or quartz), which exhibit lower thermal expansion. Quartz fibers, in particular, have a near-zero CTE, acting as a stabilizing framework within the substrate. These fibers restrict the epoxy resin’s expansion, as their stiffness resists the resin’s tendency to swell when heated. The non-woven core in low-CTE CEM3 is also denser, packing more high-modulus fibers to enhance this effect.

Epoxy Resin Modification

The epoxy resin in low-CTE CEM3 is formulated to reduce its intrinsic expansion. This involves:

Adding Thermally Stable Fillers: Micron-sized fillers like silica (SiO₂) or alumina (Al₂O₃)—which have low CTEs—are mixed into the resin. These fillers occupy space, limiting the resin’s ability to expand. Silica, with a CTE of ~0.5 ppm/°C, is particularly effective, reducing the resin’s expansion by 30–40%.

Increasing Cross-Link Density: A more highly cross-linked resin structure (achieved by optimizing curing agents) creates a rigid molecular network that resists expansion. This also improves the resin’s thermal stability, preventing softening at high temperatures.

Interface Engineering

The bond between glass fibers and resin is critical: a weak interface allows the resin to expand independently, undermining the fiber’s stabilizing effect. Low-CTE CEM3 uses advanced coupling agents (e.g., amino-silanes) to strengthen this bond, ensuring the fibers and resin expand/contract as a unified structure. This reduces “micro-gapping” at the interface, a common source of localized stress.

Manufacturing Techniques for Low-CTE CEM3

Producing low-CTE CEM3 requires precise process control to ensure uniform fiber distribution and resin curing, both of which impact final CTE:

Controlled Fiber Layup

High-modulus fibers must be evenly distributed to avoid localized high-CTE regions. Manufacturers use automated layup machines to align fibers in both warp and weft directions, creating a balanced structure that resists expansion in all axes. For the non-woven core, air-laid processes ensure consistent fiber density, preventing thin spots where expansion could concentrate.

Optimized Curing Cycles

The resin’s cross-link density—key to low CTE—depends on precise curing. Low-CTE CEM3 undergoes a stepped curing process: heating to 120°C for 30 minutes to initiate cross-linking, then ramping to 180°C for 2 hours to complete the reaction. This slow, controlled process ensures full cross-linking, maximizing resin stiffness. Cooling is also gradual (5°C per minute) to prevent thermal stress that could alter the substrate’s CTE.

Post-Curing Stabilization

After lamination, low-CTE CEM3 undergoes a post-cure at 200°C for 4 hours. This step relieves residual stresses from manufacturing and further stabilizes the resin-fiber network, ensuring the CTE remains consistent over time. Without post-curing, the CTE can drift by 10–15% during the PCB’s lifespan, compromising reliability.

Performance Benefits of Low-CTE CEM3

Low-CTE CEM3 delivers tangible improvements in reliability and performance, particularly in thermally challenging environments:

Reduced Thermal Stress

By matching the CTE of common components (e.g., ceramic capacitors, silicon chips), low-CTE CEM3 minimizes stress on solder joints. In thermal cycling tests (-40°C to 125°C), solder joints on low-CTE CEM3 survive 5,000+ cycles—2–3x more than those on standard CEM3. This extends device lifespans in applications like automotive sensors or industrial controllers.

Improved Dimensional Stability

Low-CTE CEM3 exhibits less than 0.1% dimensional change across a 100°C temperature range, compared to 0.3–0.5% for standard CEM3. This stability ensures high-density components (e.g., 0.4mm pitch ICs) remain aligned, preventing short circuits or signal integrity issues. In 5G base station PCBs, where precision is critical for signal transmission, this is invaluable.

Enhanced Mechanical Strength

The high-modulus fibers and rigid resin in low-CTE CEM3 improve flexural strength by 20–25% compared to standard CEM3. This makes the substrate more resistant to physical stress, such as vibration in automotive or aerospace applications. In drop tests simulating handling accidents, low-CTE CEM3 PCBs suffer 50% fewer cracks than standard variants.

Applications of Low-CTE CEM3 PCB

Low-CTE CEM3 excels in environments where temperature fluctuations threaten reliability, finding use across diverse industries:

Automotive Electronics

Engine Control Units (ECUs): Mounted near engines, ECUs experience extreme temperature swings. Low-CTE CEM3 ensures solder joints connecting microprocessors and sensors remain intact, preventing engine performance issues.

Battery Management Systems (BMS): EV batteries generate heat during charging/discharging. Low-CTE CEM3 in BMS PCBs maintains component alignment, ensuring accurate monitoring of cell voltage and temperature.

Industrial Equipment

Oven Controllers: PCBs in industrial ovens operate at 80–150°C. Low-CTE CEM3 resists expansion, preventing delamination and ensuring reliable temperature regulation.

Welding Machines: High currents generate heat in welding control PCBs. Low-CTE CEM3 minimizes warping, keeping high-voltage components properly spaced to avoid arcing.

Aerospace and Defense

Avionics Sensors: Aircraft sensors (e.g., pitot tubes) experience -55°C to 85°C temperatures at altitude. Low-CTE CEM3 ensures consistent performance, critical for flight safety.

Radar Systems: Radar PCBs generate heat from high-power transmitters. Low-CTE CEM3 maintains alignment of antenna arrays, preserving signal accuracy.

Consumer Electronics

Oven Microwaves: Control PCBs near heating elements face 60–100°C temperatures. Low-CTE CEM3 prevents solder joint failure in timer and power components.

Gaming Consoles: High-performance GPUs generate heat, causing standard PCBs to expand. Low-CTE CEM3 in console motherboards reduces warping, maintaining GPU-socket contact for consistent performance.

Comparative Analysis: Low-CTE CEM3 vs. Alternatives

Low-CTE CEM3 occupies a unique niche, balancing performance and cost compared to other low-CTE substrates:

vs. Standard CEM3

Standard CEM3 is sufficient for stable environments (e.g., office equipment) but fails in thermal cycling. Low-CTE CEM3 offers 50–70% lower expansion, making it suitable for harsh conditions, albeit at a 20–30% higher cost.

vs. Low-CTE FR4

Low-CTE FR4 (e.g., with quartz fibers) has similar thermal stability but costs 40–60% more than low-CTE CEM3. For mid-range applications like automotive ECUs, low-CTE CEM3 delivers comparable reliability at a lower price.

vs. Metal-Core PCBs (MCPCBs)

MCPCBs have low CTEs but are heavier and conduct electricity, requiring insulation layers. Low-CTE CEM3 is lighter, electrically insulating, and more cost-effective for non-high-power applications (e.g., sensors).

vs. Ceramic Substrates

Ceramics (e.g., alumina) have ultra-low CTEs but are brittle and expensive. They are reserved for high-power applications (e.g., power electronics), while low-CTE CEM3 serves mainstream devices needing thermal stability.

Future Innovations in Low-CTE CEM3

Ongoing research aims to push low-CTE CEM3’s performance further, expanding its applications:

Nanocomposite Fillers

Adding carbon nanotubes (CNTs) or graphene to the resin could reduce CTE further while improving thermal conductivity. CNTs, with a CTE of ~-1 ppm/°C (negative expansion), counteract resin expansion, potentially lowering CTE by an additional 15–20%.

Bio-Based Low-CTE Resins

Developing epoxy resins from plant-based sources (e.g., lignin) with low CTEs would enhance sustainability. Early tests show these resins, combined with high-modulus fibers, achieve CTEs comparable to petroleum-based variants.

Anisotropic CTE Control

Future low-CTE CEM3 may feature tailored expansion—lower in the X/Y plane (where components mount) and higher in the Z-axis (to accommodate through-hole connections). This would optimize stress reduction where it matters most.

Conclusion

CEM3 PCB with Low Coefficient of Expansion addresses a critical need in electronics: reliable performance in temperature-fluctuating environments. By combining high-modulus fibers, modified resins, and advanced manufacturing, it minimizes thermal expansion, reducing stress on solder joints and preventing delamination. Its balance of performance, cost, and versatility makes it indispensable in automotive, industrial, and aerospace applications, where failure is costly or dangerous. As devices continue to operate in harsher conditions, low-CTE CEM3 will play an increasingly vital role, ensuring electronics remain robust, efficient, and long-lasting. For engineers, it represents a practical solution that bridges the gap between standard substrates and expensive specialty materials, proving that targeted innovation can elevate mid-tier substrates to meet demanding challenges.
