In the dynamic landscape of modern electronics, the demand for materials that can offer superior thermal management, mechanical strength, and electrical performance has never been higher. Metal Based Laminates have emerged as a key solution, revolutionizing the way printed circuit boards (PCBs) are designed and manufactured. These laminates combine the advantages of metal substrates with insulating and conductive layers, creating a versatile material that is essential for a wide range of electronic applications. This article will comprehensively explore metal based laminates, covering their composition, benefits, applications, design considerations, and future trends.

What are Metal Based Laminates?

Metal Based Laminates are composite materials used predominantly in the fabrication of PCBs. At their core, they consist of three main components: a metal substrate, an insulating layer, and a conductive layer.

Metal Substrate: This is the foundation of the laminate, typically made from materials like aluminum or copper. The metal substrate provides excellent thermal conductivity, allowing for efficient heat dissipation from heat - generating components. It also offers mechanical strength, making the laminate resistant to physical stress, vibrations, and shocks.

Insulating Layer: Positioned between the metal substrate and the conductive layer, the insulating layer is crucial for electrical isolation. It prevents short circuits by separating the metal substrate from the electrical components and traces on the board. At the same time, it should have good thermal conductivity to enable heat transfer from the components to the metal substrate.

Conductive Layer: Usually a copper foil, the conductive layer is where the electrical circuit is formed. It is etched to create the traces and pads that connect the various electronic components, ensuring the proper flow of electrical signals.

Key Types of Metal Substrates

Aluminum: Widely used due to its favorable combination of cost, lightweight, and decent thermal conductivity. Aluminum substrates are resistant to corrosion, making them suitable for a variety of environments. They are commonly found in applications such as LED lighting, consumer electronics, and automotive electronics where a balance of performance and cost is required.

Copper: Known for its superior thermal conductivity compared to aluminum, copper substrates are preferred in high - power applications where maximum heat dissipation is essential. However, copper is heavier and more expensive, which may limit its use in some cost - sensitive or weight - restricted applications. It is often utilized in industrial electronics, aerospace, and high - end computing systems.

Advantages of Metal Based Laminates

Exceptional Thermal Management: One of the most significant advantages of metal based laminates is their ability to efficiently manage heat. In traditional PCBs with organic substrates, heat dissipation can be a major challenge, leading to overheating of components and reduced performance. Metal based laminates, on the other hand, can quickly transfer heat away from components, maintaining lower operating temperatures and enhancing the reliability and lifespan of the electronic device.

Mechanical Robustness: The metal substrate imparts excellent mechanical strength to the laminate. This makes it more durable and capable of withstanding harsh operating conditions, including vibrations, shocks, and physical impacts. As a result, metal based laminates are well - suited for applications in automotive, aerospace, and industrial settings where mechanical stability is crucial.

Electrical Performance: Despite the presence of a metal substrate, metal based laminates can be designed to offer good electrical insulation and signal integrity. The insulating layer effectively isolates the electrical components from the metal, while the conductive layer can be precisely engineered to support high - frequency signals and complex circuit designs.

Design Flexibility: Advanced manufacturing techniques allow for a high degree of design flexibility with metal based laminates. They can be fabricated into various shapes and sizes, and support multi - layer designs, buried vias, and blind holes. This enables designers to create compact and efficient PCB layouts that meet the specific requirements of different electronic applications.

Applications of Metal Based Laminates

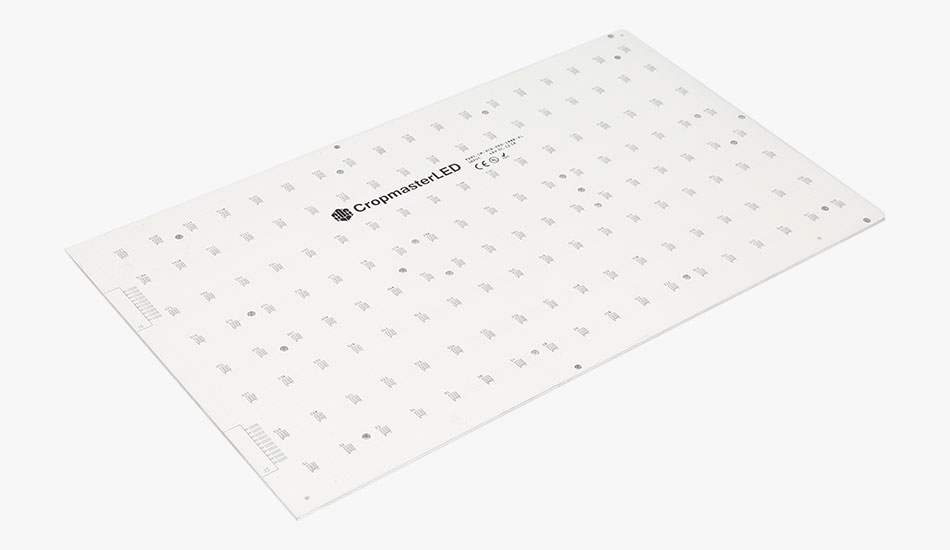

LED Lighting: In the LED lighting industry, heat management is critical for the performance and lifespan of LEDs. Metal based laminates are widely used in LED fixtures, such as streetlights, high - bay lights, and automotive headlights. The efficient heat dissipation provided by these laminates ensures that LEDs operate at optimal temperatures, maximizing light output and minimizing the risk of premature failure.

Automotive Electronics: The automotive environment is harsh, with high temperatures, vibrations, and electrical interference. Metal based laminates are employed in various automotive applications, including engine control units (ECUs), advanced driver assistance systems (ADAS), and automotive lighting. Their mechanical strength and thermal management capabilities make them ideal for ensuring the reliable operation of electronic components in vehicles.

Industrial and Power Electronics: In industrial settings, power electronics components like inverters, motor drives, and power supplies generate a significant amount of heat. Metal based laminates are used to dissipate this heat effectively, preventing overheating and ensuring the continuous operation of industrial equipment. They also offer the necessary mechanical durability to withstand the demanding conditions of industrial environments.

Consumer Electronics: With the increasing demand for more powerful and compact consumer electronics devices, such as high - performance laptops, gaming consoles, and smartphones, metal based laminates are being increasingly adopted. They help manage the heat generated by high - power components, enabling the creation of thinner and lighter devices without sacrificing performance.

Aerospace and Defense: In the aerospace and defense sectors, where reliability and performance are of utmost importance, metal based laminates play a crucial role. They are used in avionics systems, radar equipment, and military communication devices, offering excellent thermal management, mechanical strength, and resistance to extreme environmental conditions.

Design Considerations for Metal Based Laminates

Thermal Design:

Metal Substrate Selection: Choosing the right metal substrate depends on the specific thermal requirements of the application. Aluminum may be sufficient for moderate - heat applications, while copper is a better choice for high - power, high - heat scenarios.

Insulating Layer Properties: The thickness and thermal conductivity of the insulating layer are key factors in thermal performance. A thinner layer can facilitate better heat transfer, but it may also compromise electrical isolation. Selecting an insulating material with high thermal conductivity and good electrical insulation properties is essential.

Component Placement and Heat Path Optimization: Strategically placing heat - generating components over the metal substrate and designing an efficient heat path through the use of thermal vias can significantly enhance heat dissipation.

Mechanical Design:

Component Mounting: When mounting components on a metal based laminate, it is important to consider the mechanical stress that the components may exert on the board. Heavier components may require additional support to prevent damage to the laminate.

Thermal Expansion Compatibility: Different materials in the laminate, including the metal substrate, insulating layer, and conductive layer, have different coefficients of thermal expansion (CTE). Ensuring CTE compatibility is crucial to prevent delamination or cracking of the laminate during temperature changes.

Board Shape and Edge Treatment: The shape of the board and the treatment of its edges can affect its mechanical strength. Unusual or complex board shapes may require additional considerations to ensure that the laminate can withstand mechanical stress without deforming.

Electrical Design:

Trace Width and Spacing: Determining the appropriate trace width and spacing is crucial for ensuring the electrical performance of the PCB. Wider traces are required for higher - current applications to minimize resistance and prevent excessive heat generation. Adequate spacing between traces is necessary to prevent electrical short circuits.

Ground Plane Design: A well - designed ground plane can improve signal integrity, reduce electromagnetic interference (EMI), and provide a low - impedance path for electrical current. In metal based laminates, the ground plane design should take into account the presence of the metal substrate, which can influence the electrical characteristics of the board.

Electrical Insulation: Ensuring the electrical insulation of the insulating layer between the metal substrate and the electrical components is of utmost importance to prevent short circuits and electrical hazards.

Manufacturing Processes of Metal Based Laminates

Layer Preparation: The manufacturing process begins with the preparation of the individual layers. The metal substrate is cleaned thoroughly to remove any contaminants, such as oils, dirt, or oxides. The insulating layer material, which may be in the form of a film or a liquid resin, is also prepared. The copper foil for the conductive layer is cleaned and roughened to enhance adhesion.

Lamination: The prepared layers are then laminated together. In a typical lamination process, the insulating layer is placed between the metal substrate and the copper foil. The assembly is then subjected to heat and pressure in a laminator or press. The heat softens the insulating material, allowing it to flow and bond the layers together, while the pressure ensures good adhesion and a uniform laminate structure.

Circuit Imaging and Etching: After lamination, the next step is to create the electrical circuit on the copper foil. Photolithography is commonly used for circuit imaging. A photosensitive resist is applied to the surface of the copper foil, and a mask with the desired circuit pattern is used to expose the resist to light. The exposed areas of the resist are then developed, leaving the copper traces underneath protected by the unexposed resist. The unprotected copper is then etched away using a chemical solution, leaving the conductive traces and pads that form the electrical circuit of the PCB.

Drilling and Plating: Holes are drilled through the laminate for various purposes, such as for component leads, vias, and mounting holes. Specialized drilling equipment is used to ensure accurate hole placement and smooth hole edges. After drilling, the holes are plated with a conductive material, usually copper, to create electrical connections between the different layers of the PCB.

Surface Finishing: The final step in the manufacturing process is surface finishing. The surface finish serves to protect the copper traces from oxidation and corrosion, as well as to provide a suitable surface for soldering components onto the PCB. Common surface finishes include hot - air solder leveling (HASL), electroless nickel immersion gold (ENIG), and organic solderability preservative (OSP).

Challenges and Solutions in Using Metal Based Laminates

Cost: Metal based laminates can be more expensive than traditional organic - based PCBs, especially those with copper substrates. To address this, manufacturers are constantly looking for ways to reduce production costs through process optimization, economies of scale, and the development of more cost - effective materials.

Processing Complexity: The manufacturing processes for metal based laminates can be more complex compared to traditional PCBs. For example, drilling and plating on metal substrates may require specialized equipment and techniques. Research and development efforts are focused on improving manufacturing processes to make them more efficient and less costly.

Compatibility with Components: Ensuring compatibility between the metal based laminate and the electronic components is crucial. Some components may be sensitive to the thermal and mechanical properties of the laminate. Designers need to carefully select components and design the PCB layout to minimize any potential compatibility issues.

Industry Trends and Future Outlook

Miniaturization and High - Density Integration: As the electronics industry continues to move towards smaller and more powerful devices, there is a growing demand for metal based laminates that can support high - density component integration. Manufacturers are developing thinner and more flexible laminates to meet these requirements.

Sustainable Materials and Manufacturing: There is an increasing focus on sustainability in the electronics industry. Future metal based laminates are likely to incorporate more environmentally friendly materials and manufacturing processes, reducing their environmental impact.

Integration with Advanced Cooling Technologies: To meet the ever - increasing heat dissipation demands of high - power electronics, metal based laminates are likely to be integrated with advanced cooling technologies, such as phase - change materials, vapor chambers, and microfluidic cooling systems.

Customization and Personalization: With the rise of niche markets and the demand for customized electronics, there will be a greater emphasis on the customization of metal based laminates. Manufacturers will offer more flexibility in terms of material selection, layer thickness, and design features to meet the specific needs of different customers and applications.

Conclusion

Metal Based Laminates have become an indispensable part of modern electronics manufacturing, offering a unique combination of thermal management, mechanical strength, and electrical performance. Their wide range of applications, from LED lighting to aerospace electronics, highlights their versatility and importance. While there are challenges associated with their use, ongoing research and development efforts are continuously improving their performance, reducing costs, and expanding their capabilities. As the electronics industry continues to evolve, metal based laminates will play an even more crucial role in powering the future of electronics, enabling the creation of more efficient, reliable, and innovative electronic devices.
